NEW PCP 300BAR FULLY WARAPPED CARBON FIBER CYLINDER WITH PLASTIC LINER

Product Details

Product Description

Product Description

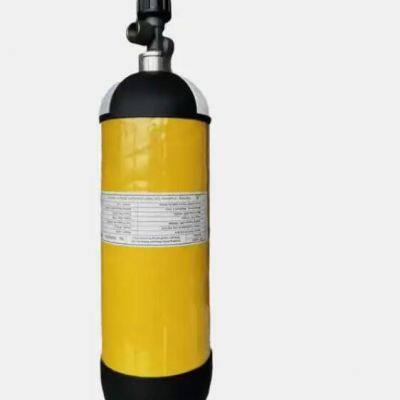

Fully Wrapped Carbon Fiber Reinforced Aluminium Lined Composite Cylinder

Type	Volume （litre)	Outer Diameter (mm)	Length (mm)	Weight (kg)	Working Pressure (Mpa)	Breaking Pressure (Mpa)
HFCFC-0.5	0.5	60	305	0.6	30	≥90
HFCFC-1.6	1.6	114	268	1.4	30	≥90
HFCFC-2	2	96	433	1.5	30	≥90
HFCFC-3	3	112	445	1.9	30	≥102
HFCFC-4.7	4.7	137	492	3.0	30	≥102
HFCFC-6.8	6.8	157	528	3.8	30	≥≥102
HFCFC-9	9	174	558	4.9	30	≥102
HFCFC-12	12	205	565	7.4	30	≥102

---
