Tire Tread Vulcanizer Machinery / Rubber Tread Making Machine

US$36,000.00-45,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
all various tyre tread vulcanizer
Total Pressure
0.25-8.0 Mn
Piston Stroke
250-500 mm
Plate Size
1500X1500 mm
Plate Clearance
125 mm
Type
Tire Machinery
Type of General Rubber Machinery
Material Processing Machine
Type of Tire Machinery
Rubber Regeneration Machinery
Transport Package
Tyre Tread Vulcanizer Exporting Standard
Specification
CE, SGS
Trademark
eenor
Origin
Qingdao, China
HS Code
84778000
Production Capacity
300 Sets Per Year

Product Description

1.About our company: Our company is a firm engaged in production enterprise, mechanism of rubber has more than 20 years of history.
Company management certification: ISO 9001:2000, ISO 17799, ISO 9001:2008, ISO 14001:2004, ISO/TS 16949
Our main products are plate vulcanizing press, two-roll mixing mill, rubber extruder, banbury intensive kneader, bale cutter, conveyer belt vulcanizing press, tyre reclaiming machines, rubber refiner, rubber cracker, etc. we especially specialize in the design and manufacture of the nonstandard products .
2.Main characteristic:
1.unit treading working pressure is very high greater than 81kg/cm2.Ensure the tread density,improved wear-resisting performance.
2.Transform the hydraulic systerm process.Reducing the power. Save the energy,total power only 7.5kw.
3.Use PLC control,the automation control.
4.Can be easily recycled the overflow of rubber,reduce the cost.
5.Smooth operation,less easyworm parts.

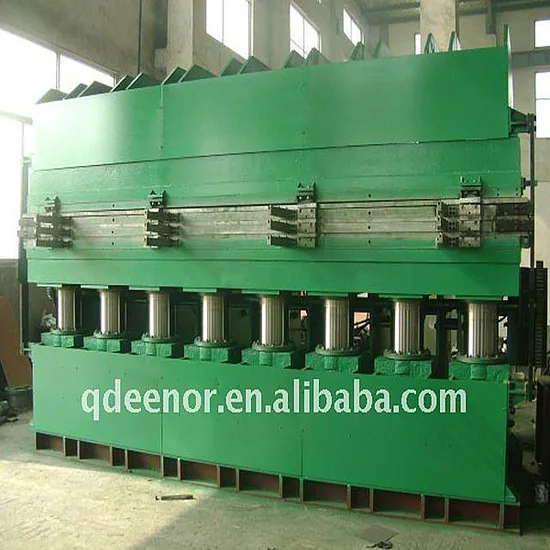

3.Pictures of vulcanizing machine
4.Certification of vulcanizing machine:

Type XLE-Q5000× 400× 3
Total Pressure(tons) 1000
Plate Size(mm) 5000× 400× 70
Daylight (mm) 150
Layer 3
Piston Stroke(mm) 450
Open/Close Mould Speed(mm/s) ≥ 15
Cylinder Diameter(mm) φ 285
Cylinder No. (piece) 8
Motor Power(kw) 11+5.5
