| US$199.00 | 10 Pieces (MOQ) |

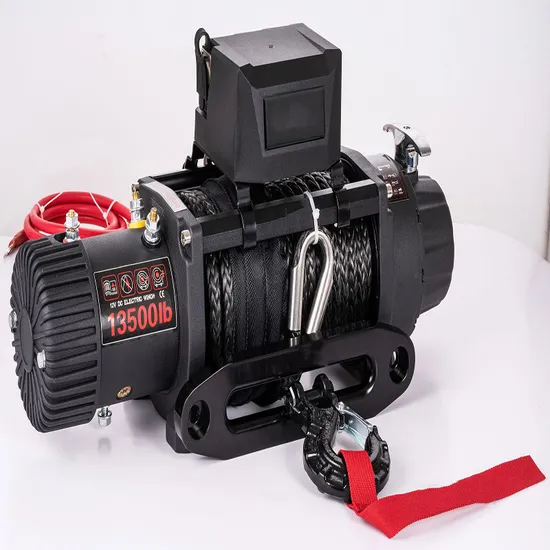

| Product Details | |||||
| Line Pull | 13,500lbs/6,124kgs | ||||
| Motor | Sealed Series Wound | ||||
| Gear Train | 3-stage planetary | ||||
| Gear Ratio | 265:1 | ||||
| Brake | Automatic, 100% load holding | ||||
| Clutch | Rotate 180 degrees | ||||
| Solenoid | 400A Sealed Contactor | ||||
| Electric cables | 20mm2, 40cm x 3pc, 180cm x 2pc | ||||
| Wired Controller | 3pin, 3.7m/12ft | ||||
| Wireless Remote | Included | ||||
| Rope | Synthetic Rope: 9.5mm×26m wtith hawse fairlead and hook | ||||
| Winch Dimension | 551 x 160 x 246mm (21.7" x 6.3" x 7.9") | ||||
| Mouting Bolt Pattern | 254mm x 114.3mm (10" x 4.5" ) | ||||
| Packing weight | Winch weight: 26kgs/57.3lbs, Gross weight:28kgs/83.8lbs | ||||
| Packing Size | Box dimension: 610×340×260 mm (23.6"×13.4"×10.2"), | ||||
| Line Speed Amperes Volts First Layer(DC12V) | |||||
| Line Pull Ibs.(kg) | Line Speed ft/min (m/min) | Current (amps) | |||
| 0 | 16FPM/4.9MPM | 15 | |||
| 1000(454) | 10.5FPM/3.2MPM | 70 | |||
| 2000(907) | 9.2FPM/2.8MPM | 105 | |||
| 3000(1360) | 7.2FPM/2.2MPM | 135 | |||
| 4500(2041) | 3.9FPM/1.2MPM | 210 | |||
| Line Pull and Rope Capacity in Layer Line Pull | |||||
| Layer of cable | Max Line Pull. (kg) | ||||
| 1 | 4,500lbs/2,041kgs | ||||
| 2 | 3,225lbs/1,463kgs | ||||
| 3 | 2,700lbs/1,225kgs | ||||
| 4 | 2,325lbs/1,055kgs | ||||
| Lead time | |||
| Quantity (sets) | 2000 | 5000 | > 15000 |
| Lead time (days) | 15 | 25 | To be negotiated |
| Samples | |
| Maximum order quantity: | 1PCS/SET |
| Sample price: | $205/set |
| Customization(PCS) | ||
| Customized logo | Min. order | 2000 |
| Customized packaging | Min. order | 2000 |
| Graphic customization | Min. order | 3000 |
| 1. Who are we? We are based in Zhejiang, China, start from 2008,which is amanufacturer. 2.what about your R&D team and machine Equipment ? We have professional R&D personnel, technical personnel, design personnel, and inspection personnel.Having advanced machining center machinery and equipment, we can design and develop according to your requirements(OEM). 3.How can we guarantee quality? We have the best professional engineer and strict QA and QC system.Always a pre-production sample before mass production; Always final all Inspection before shipment;.all products undergo water testing,or air testing, or pressure testing before leaving the factory. 4.What can you buy from us? Tire Deflators ,Tyre Inflator Gague,Tyre Pressure Guage,Quick Coupler,Air Hose,Air Chuck,OEM. 5: Can we be your distributor? We are looking for distributor and agent all over the world. 6: How's the package?Can you post our logo? Normally are cartons, but also we can pack it according to your requirements.Customize the logo according to customers needs |
| 7: How's the delivery time? It depends on the quantity you need, 1-30 days usually. 8. why should you buy from us not from other suppliers? Maisoon is a professional manufacturer specialized in research and development,production and sales of tire deflators,tire gague, quick coupler, and air chuck for 16 years.Timely delivery and stable quality. 9. What services can we provide? Accepted Delivery Terms: FOB Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T,D/P D/A,MoneyGram,Western Union,Cash; Language Spoken:English,Chinese. |
