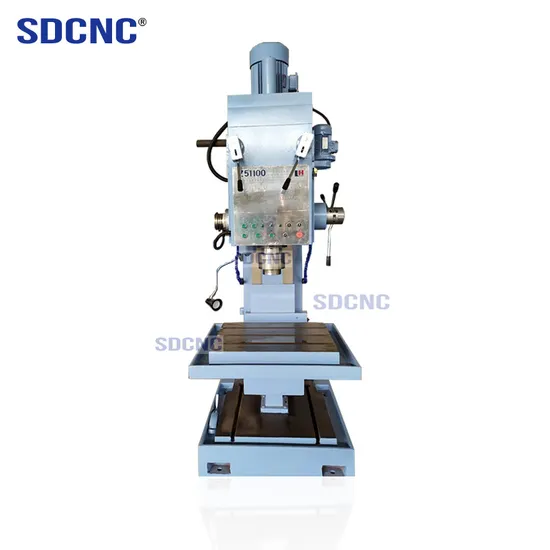

Z51100 Vertical Hole Drill Machine Drilling Equipment Heavy Duty Machine

Product Description

Product Parameters
Description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Reinforced column, stable operation; Square worktable, convenient for processing different workpieces; ·Strengthen the reinforcement base to maintain excellent rigidity and load-bearing capacity.
Main technical specifications:

Specifications	Z51100
Max drilling diameter	100mm
Max feed resistance	45000N
Max. spindle allowable torque	1150N.m
Spindle taper	Morse NO.6
Distance from spindle axis to column guideway	480mm
Spindle travel	310mm
Spindle box travel	300mm
Spindle speed	26-320r/min (6)
The amount of feed(mm/rev)	0.096-0.717r/min (6)
Working table stroke	300mm
Working table surface size	760×650mm
Distance from spindle nose to table surface	850mm
Main motor power	7.5kw
Cooling pump flow	25L/min
Overall dimension	1465×970×3170mm
N/W	3500kg

---
