Product Details
Product Description
Product Description

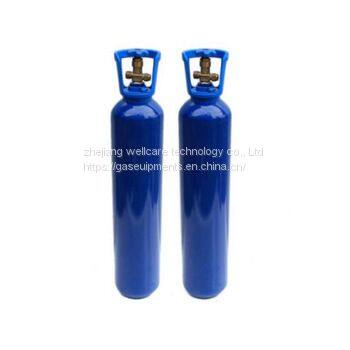

Main specs on 40L Gas Cylinders:
-1). Water capacity: 40 Liter; Mat.: 37Mn;
OD= 219 mm; W. P/T. P.: 15/25Mpa; Wall thickness: 5.7 mm; G. W.: ~47kg;
Height: 1, 345 mm (W/O cylinder cap); Gas(O2): 6M3.
-2). Color: As GREEN preferred;
-3). Connecting thread:
-4). Applied standard: ISO 9809-3;
-5). Packing: Each with nylon bag or as preferred(based on bilateral agreement).
What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Our manufactured Seamless Steel Gas Cylinders are made from moblie high-pressure vessels. They are manufactured with the most advanced technology, machinery and equipment in the word. They are ideal for holding permanent gases, such as oxygen, hydrogen, argon and carbon dioxide,and etc.
| Outside diameter (mm) | Capacity(L) | Height (mm) | Weight (kg) | Material | Wall Thickness (mm) | test pressure (MPa) | Working Pressure (MPa) |
| 108 | 2.0 | 320 | 3.75 | 37Mn | 5.7 | 22.5 | 15 |
| 108 | 2.0 | 317 | 3.72 | 37Mn | 5.7 | 22.5 | 15 |
| 121 | 4.0 | 485 | 6.16 | 37Mn | 5.7 | 22.5 | 15 |
| 121 | 4.0 | 470 | 5.95 | 37Mn | 5.7 | 22.5 | 15 |
| 140 | 4.0 | 492 | 5.7 | 37Mn | 5.7 | 22.5 | 15 |
| 140 | 5.0 | 578 | 7.52 | 37Mn | 5.7 | 22.5 | 15 |
| 140 | 7.0 | 713 | 9.84 | 37Mn | 5.7 | 22.5 | 15 |
| 152 | 7.0 | 648 | 9.57 | 37Mn | 5.7 | 22.5 | 15 |
| 140 | 10.0 | 935 | 13.90 | 37Mn | 5.7 | 22.5 | 15 |
| 152 | 10.0 | 846 | 12.6 | 37Mn | 5.7 | 22.5 | 15 |
| 159 | 10.0 | 805 | 14.15 | 37Mn | 5.7 | 22.5 | 15 |
| 159 | 12.0 | 950 | 16.34 | 37Mn | 5.7 | 22.5 | 15 |
| 159 | 15.0 | 955 | 19 | 37Mn | 5.7 | 22.5 | 15 |
| 219 | 25.0 | 885 | 33 | 37Mn | 5.7 | 22.5 | 15 |
| 219 | 32.0 | 1090 | 40 | 37Mn | 5.7 | 22.5 | 15 |
| 219 | 40.0 | 1310 | 48.0 | 37Mn | 5.7 | 22.5 | 15 |
| 232 | 40.0 | 1170 | 45.3 | 37Mn | 5.7 | 22.5 | 15 |
| 232 | 46.7 | 1345 | 51 | 37Mn | 5.7 | 22.5 | 15 |
| 219 | 47.0 | 1355 | 52 | 37Mn | 5.7 | 22.5 | 15 |
| 219 | 50.0 | 1600 | 57.0 | 37Mn | 5.7 | 22.5 | 15 |
| 232 | 50.0 | 1440 | 56.0 | 34CrMo4 | 5.7 | 30 | 20 |
| Outside diameter (mm) | Capacity(L) | Height (mm) | Weight (kg) | Material | Wall Thickness (mm) | Test Pressure (MPa) | Working Pressure (MPa) |
| 108 | 2.0 | 320 | 3.75 | 37Mn | 5.7 | 22.5 | 15 |
| 108 | 2.0 | 317 | 3.72 | 37Mn | 5.7 | 22.5 | 15 |
| 121 | 4.0 | 485 | 6.16 | 37Mn | 5.7 | 22.5 | 15 |
| 121 | 4.0 | 470 | 5.95 | 37Mn | 5.7 | 22.5 | 15 |
| 140 | 4.0 | 492 | 5.7 | 37Mn | 5.7 | 22.5 | 15 |
| 140 | 5.0 | 578 | 7.52 | 37Mn | 5.7 | 22.5 | 15 |
| 140 | 7.0 | 713 | 9.84 | 37Mn | 5.7 | 22.5 | 15 |
| 152 | 7.0 | 648 | 9.57 | 37Mn | 5.7 | 22.5 | 15 |
| 140 | 10.0 | 935 | 13.90 | 37Mn | 5.7 | 22.5 | 15 |
| 152 | 10.0 | 846 | 12.6 | 37Mn | 5.7 | 22.5 | 15 |
| 159 | 10.0 | 805 | 14.15 | 37Mn | 5.7 | 22.5 | 15 |
| 159 | 12.0 | 950 | 16.34 | 37Mn | 5.7 | 22.5 | 15 |
| 159 | 15.0 | 955 | 19 | 37Mn | 5.7 | 22.5 | 15 |
| 219 | 25.0 | 885 | 33 | 37Mn | 5.7 | 22.5 | 15 |
| 219 | 32.0 | 1090 | 40 | 37Mn | 5.7 | 22.5 | 15 |
| 219 | 40.0 | 1310 | 48.0 | 37Mn | 5.7 | 22.5 | 15 |
| 232 | 40.0 | 1170 | 45.3 | 37Mn | 5.7 | 22.5 | 15 |
| 232 | 46.7 | 1345 | 51 | 37Mn | 5.7 | 22.5 | 15 |
| 219 | 47.0 | 1355 | 52 | 37Mn | 5.7 | 22.5 | 15 |
| 219 | 50.0 | 1600 | 57.0 | 37Mn | 5.7 | 22.5 | 15 |
| 232 | 50.0 | 1440 | 56.0 | 34CrMo4 | 5.7 | 30 | 20 |
>>
