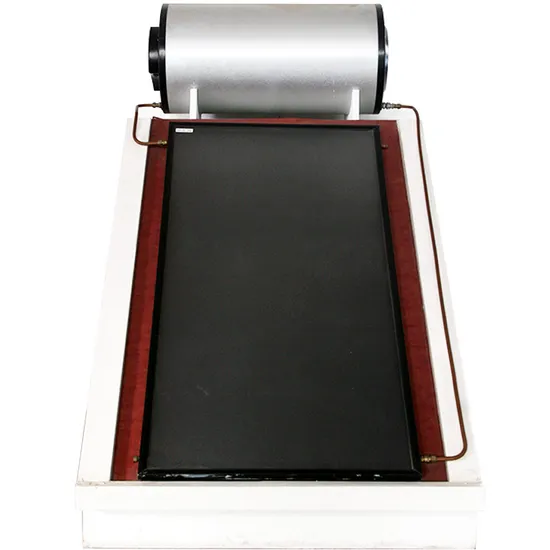

Flat Plate High Efficiency Manufacturer Solar Hot Water Collector

Product Description

Flat Plate High Efficiency Manufacturer Solar Hot Water Collector
We are a manufacturer that specialized in solar system for 27 years with daily output more than 2000 systems/ 8 hours. We are equipped with imported automatic machinery factory and 6 production bases in China, which can make sure the stable quantity and quality supply. Besides, we have got various certificate to ensure superior quality, such as CE, CCC, SABS, SRCC, Solar Keymark and so on and our products are exported to all over the world.
Sangle solar as a leading company in Solar Industry,established in 1987. With the advanced machines and technologies (imported from Germany). Till now, Sangle solar has 6 production bases in China. We have an experienced engineer's team, we not only provide solar system, but also provide efficient and cost effective solar solutions of all climates.
1.Flat Plate Solar Collector Features:The split flat plate solar water heater composes of flat plate solar collector, storage water tank, workstation system and interconnecting pieces.
1) Copper core and pipes in flat plate as heat exchanger, with a quick startup and super efficiency.
2) High-tech methods of coating to meet your upper needs
3) Ultrasonic technology ensures seamless jointing of copper core and pipes
4) Modularized collector, arbitrary combination with architectural structure, adaptable to either slope or flat roof, little maintenance needed
2.Technical Specification:

Description	Flat Plate
Dimension L*W*H	2000 * 1000 * 80mm
Gross Area	2.0m²
Absorber Area	1.87 m²
Net Weight	31Kg
Max. Pressure	1.5Mpa
Max. Working Pressure	1.0Mpa
Connector Type	Straight Pipe without Screw
Absorber	Materials	Copper Tube & Aluminum Plate
	Surface Teatment	Blue Coating
	Construction Type	Fin & Tubes ( Ultrasonic Welding)
	Absorptivity / Emissivity	95%±1%/5%±2%
	Riser Tube Size / Material	φ10*0.5 / TP Copper
	Header Tube Size / Material	φ22*0.6 / TP Copper
Thermal Insulation	Material / Thickness	Fiber Glass Cotton (black backing) , with aluminum foil
Frame	Aluminum Alloy
Bottom cover	Aluminum Plate
Transparent Cover	Low-iron Tempered Glass

FAQ Q: What is your Delivery Time? A: LCL order/Sample order:10 days
Full container order:15 days Q: What is your Warranty Time? A: 3 years. Q: Can you accept OEM? A: Of course! Q: What is your Payment Term? A: We accept T/T or L/C at sight,Western Union,MoneyGram,Paypal. Q: What is your MOQ? A: 1 sets. Q: What is your Packing? A: Carton container. Q: What is your FOB Port? A: We accept FOB SHANGHAI etc. Q: What is your Monthly Production Capacity? A: 5000 Pieces. Q: What is your Shipping Term? A: By Sea/Air
