HBM30 Taladro Vertical Drilling Press Milling Tapping machine

US$1,900.00-2,100.00 1 Piece (MOQ)

Basic Info.

Model NO.
HMB30
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Gross/Net weight
250/220 kilos
Transport Package
Wood Pallet
Specification
860*710*1020
Trademark
HERCULES OR OEM
Origin
China
HS Code
8459290000
Production Capacity
3000 PCS/Month

Product Description

Specification Unit HBM30
Max. Drilling dia. mm 32
Max.end milling capacity mm 20
Max.face milling capacity mm 76
Table size mm 700 x 210
Table travel mm 400 x 200
T-slot mm 3 x 14
Spindle taper MT3/R8/ISO30
Spindle travel mm 70
Spindle speed range r/min 50-2250
Spindle speed step Variable
Distance from spindle nose to surface of table mm 210
Distance from spindle nose to table mm 470
Main motor power kW 1.5kw(Brushless motor)
Machine dimensions mm 860*710*1020
Machine weight kg 220
Hercules Machinery Equipment Ltd.

Standard Accessories:
1. 2-Axis DRO
2. Digital depth ruler
3. Spindle cover with micro switch
4. Drill chuck 3-16/B16
5. Drawbar
6. Arbor MT3/B16-M12
Optional Accessories:
1. Stand

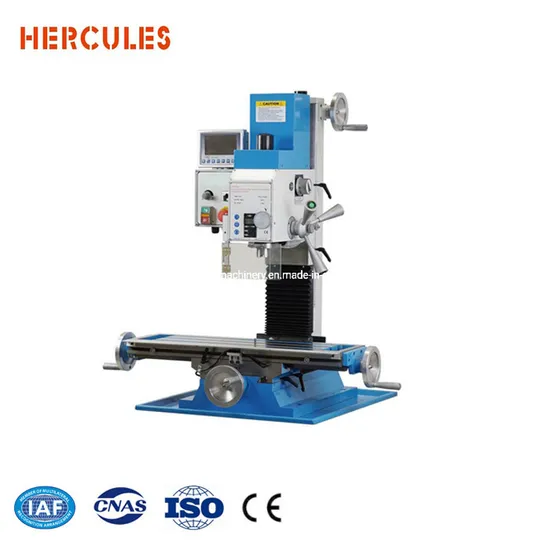

Pictures for reference only:
