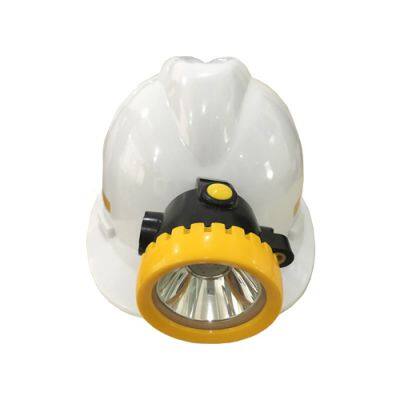

Cordless LED miner cap lamp KL1.2Ex
Miner’s cap lamp KL1.2Ex
ATEX (Ex ia I M1) certified, in accordance with Directive 2014/34/EU, complies with standard:
EN 60079-0: 2012
EN 60079-11: 2012
EN 60079-35-1: 2011
EN 50303:2000
Mining cap lamp KL1.2Ex is specially designed for use in underground mining operations.
Utilities 1400mAh capacity lithium-ion batteries and latest LED light source, with all-in-one design, very small and light.
The light source with 1 main light for working and 4 auxiliary lights for emergency lighting, main light max illumination reaches to 3500Lux, working time more than 11hours.
Built-in micro-controller and multiple safety protective circuit, intelligent management of charging & discharging process ensure the safety and reliability.
LED constant current driving mode ensures the light intensity of illumination basically remain unchanged after 11 hours' lighting.
Item
| KL1.2Ex
|
Battery style
| Li-ion
|
Rated capacity
| 1.4Ah
|
Rated voltage
| 3.7V
|
Lighting time
| ≥11h
|
Main light source
| Working current
| 0.12A
|
Max luminance
(1m away from the lamp)
| When lighting begins
| ≥3500 lx
|
After lighting for 11h
| ≥2500 lx
|
Sub-light source rated power
| 0.06A
|
Life of cap lamp
| 2 years
|
Charging Voltage
| (6-8)V
|
Charging time
| ≤8h
|
Explosion protection
| Ex ia I Ma
|
Protection grade
| IP65
|
Exterior dimensions
| Φ67x82x73mm
|
Weight
| 0.2kg
|
Matched single charger, 10 unit combined charger, 80 unit rack charger
