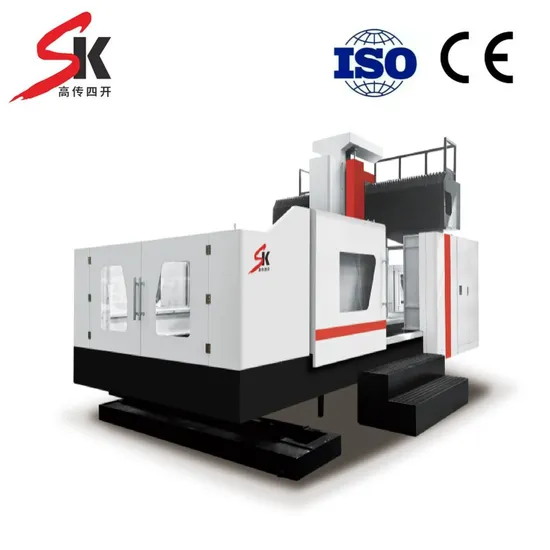

CNC Supplier New Style 2024 CNC Gantry Milling Machining Center GF-3025 Large Metal Processing

Product Description

1. CNC GANTRY VERTICAL MACHINE
Product Description
1.1 DESCRIPTION The Professional Gantry Vertical CNC Double Column Metal-Cutting Machining Center, meticulously crafted by NANJING NEWSIV EQUIPMENT CO., LTD., stands as a testament to pinnacle engineering and cutting-edge technology. This sophisticated machine is engineered to meet the most demanding industrial applications, delivering unmatched precision, reliability, and efficiency. With its robust structure and advanced CNC capabilities, each cut is executed with utmost accuracy, making it an essential asset for high-performance metalworking operations.
FEATURE
1.2 FEATURE
Outstanding performance, unwavering precision, and superior rigidity.
Crafted from premium-grade resin sand casting with a box-shaped structural design, this machine tool stands out for its robustness and durability.
Undergoing an aging treatment to eliminate internal stress, ensuring long-lasting stability.
The entire machine boasts exceptional rigidity and strength, characterized by remarkable cutting resistance and high precision.
Automatic Tool Change System
Experience the speed and safety of our arm-type tool change system, delivering swift, seamless, and dependable tool exchanges.
Controlled by advanced PLC software, the tool exchange process completes in approximately 8 seconds, minimizing non-cutting time.
Rotatable Control Box
The rotatable seat-type control panel and portable handwheel operation box offer unparalleled convenience.
Operators can utilize it from any position, with the foot switch enabling easy tool clamping and release on the spindle head.
Servo Motor
The servo motor directly drives the screw rod via coupling, reducing vibration and enhancing precision across all three axes.
Featuring a servo motor with a built-in absolute encoder for indirect displacement measurement, forming a semi-closed loop system to ensure pinpoint positioning accuracy. The three-axis positioning is managed by the numerical control system.
1.2 PARAMETERS

Specification		GF-2214/2514/3014/4014	GF-2217/2717/3017/4217	GF-2718/3218/4218	GF-2722/3022/42222/5222/6222	GF3025/4025/5025/6025
X-axis travel	mm	2200/2500/3000/4200	2200/2700/3000/4200	2700/3200/4200	2700/3000/4200/5200/6200	3200/4200/5200/6400
Y-axis travel	mm	1450	1700	2000	2400	2800
Z-axis travel	mm	850	850	1000	1000	1100
Gantry width	mm	1400	1700	1800	2200	2500
X/Y/Z guide track	-	XY:Linear guide track Z:Slide guide track	XY:Linear guide track Z:Slide guide track	XY:Linear guide track Z:Slide guide track	XY:Linear guide track Z:Slide guide track	XY:Linear guide track Z:Slide guide track
Worktable size	mm	2200/2500/3000/4000x1200	2200/2700/3000/4200X1500	2600/3000/4000X1800	2500/3000/4200/5000/6000X2000	3200/4200/5000/6200X2300
Table form (,No.*screw hole)	mm	7-22*150	7-22*220	9-22*180	9-22*203	9-22*226
Spindle type	BT	BT50	BT50	BT50	BT50	BT50
Spindle speed	rpm	6000	6000	6000	6000	6000
Spindle dia	Ø	190	190	190	190	190
Spindle motor	kw	15/18.5	15/18.5	15/18.5	22/26	22/26
X/Y/Z quickly move speed	m/min	15/15/12	15/15/12	15/15/12	12/12/12	12/12/12
Max cutting feed speed	-	1-10000	1-10000	1-10000	1-10000	1-10000
Tool magazine capacity	pcs	24	24	24	24	24
Max tool weight	Kg	18	18	18	18	18
X/Y/Z axis position accuracy	mm	0.008	0.008	0.008	0.008	0.008
X/Y/Z axis repeat position accuracy	mm	0.005	0.005	0.005	0.005	0.005
Max.loading of worktable	g	4000/5000/6000/8000	5000/5000/6000/8000	6000/8000/10000	7000/9000/11000/13000/16000	8000/12000/16000/19000
Distance from the spindle front end to worktable center	mm	270-1120	165-1025	150-1150	150-1150	200-1300
Machine size (L×W×H)	m	6.4/7.4/8.4/10x4x3.7	6.6/7.6/8.6/10.6X4.5X3.5	7.5/8.5/10.5X4.7X3.8	7.5/8.5/10.5/12.5/14.5X5X3.8	8.5/10.5/12.5/14.5X5.7X4.5
Machine weight	t	16/19/22/25	18/21/24/27	23/26/31	24/27/30/35/40	32/37/42/47

Specification		GF3228/4228/5028/6228	GF-3232/4232/5232/6232	GF4037/5037/6037/8037	GF4042/5042/6042/8042
X-axis travel	mm	3200/4200/5000/6200	3200/4200/5000/6000	4200/5200/6200/8200	4200/5200/6200/8200
Y-axis travel	mm	3200	3300	4000	4500
Z-axis travel	mm	1100	1250	1250	1250
Gantry width	mm	2800	3200	3700	4200
X/Y/Z guide track	-	XY:Linear guide track Z:Slide guide track	XY:Linear guide track Z:Slide guide track	XY:Linear guide track Z:Slide guide track	XY:Linear guide track Z:Slide guide track
Worktable size	mm	3200/4200/5000/6200X2300	3200/4200/5000/6000X2700	4000/5000/6000/8000x3000	4000x5000x6000x8000x3000
Table form (,No.*screw hole)	mm	9-22*226	13-22*180	13-28*200	13-28*200
Spindle type	BT	BT50	BT50	BT50	BT50
Spindle speed	rpm	6000	6000	6000	6000
Spindle dia	Ø	190	190	200	200
Spindle motor	kw	22/26	22/26	22/26	22/26
X/Y/Z quickly move speed	m/min	12/12/12	12/12/12	15/15/12	12/12/12
Max cutting feed speed	-	1-10000	1-10000	1-10000	1-10000
Tool magazine capacity	pcs	24	24	24	24
Max tool weight	Kg	18	18	18	18
X/Y/Z axis position accuracy	mm	0.008	0.008	0.008	0.008
X/Y/Z axis repeat position accuracy	mm	0.005	0.005	0.005	0.005
Max.loading of worktable	g	9000/12000/15000/18000	16000/20000/23000/26000	16000/20000/26000/30000	16000/20000/26000/30000
Distance from the spindle front end to worktable center	mm	200-1300	175-1425	250-1500	250-1500
Machine size (L×W×H)	m	8/10/12/14X6X4.8	9/11/13/15X6.5X4.8	11/13/15/19X7X5	11/13/15/19X7.5X5.2
Machine weight	t	35/40/45/50	40/45/50/60	50/57/65/80	55/63/73/93

1.4 STANDARD ACCESSORIES

1	24 tool magazines	6	Tri-color warning light	11	Spindle cooling	16	Portable chip blowing air gun
2	Workpiece Cooling System	7	Machine cleaning water gun	12	Fully enclosed protective cover	17	Large flow chip flushing device
3	Automatic lubrication system	8	Spindle output water	13	Foundation screws and pads	18	Spindle nose labyrinth dust blower
4	Spindle air curtain dustproof system	9	Electric cabinet heat exchanger	14	Tools and Toolboxes	19	Chip trolley
5	LED working light	10	Network transmission and CF card function	15	Double screw conveyor& chain chip conveyor	20	Transformer
