1.0m X 1.0m Sturdy Welding Table with Adjustable Height for Fabrication

Product Description

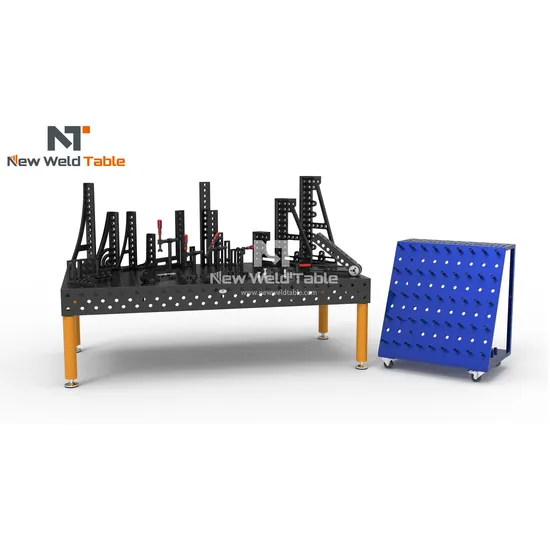

3D Welding Table ---Standard holes Product Description
3D welding table is made of ST52.3 material with nitriding + oxidising treatment and 0.2mm nitriding layer on the surface, which is effective in preventing corrosion, non-stick slag and resistant to bumping. with D28 system holes, grid 100 mm x 100 mm Three side rows of grid D28 system holes, 100 mm apart, thus significantly increasing the table extension and clamping area Available in various table sizes, surface hardness up to 600 Vickers. Optimized chamfering of the outer edge of the table, Rounded corners reduce the risk of injury Improved table stability by adding ribbed plates Grid lines with 100 mm spacing in X and Y directions Millimeter precision scales Table surface marked with X and Y coordinates New Weld Table logo on two sides of the table Round universal feet for precise height adjustment of the table The rib spacing is 400-500mm, providing strong support. Side holes arranged diagonally Product Parameters

Material	Q355B+Nitrided+Oxidation
Surface Hardness	HV400-600
Scale	Two adjacent sides have mm scales
Load	Each table leg load 800kg
Hole spacing	100mm
Hole size	28.05---28.15mm
Thickness	25mm
Side panel height	200mm

Top Hole	Side Hole

Size(mm)	Weight(kg)	SKU	Table legs
1000x1000x200	330	TA281010N	4
1200x800x200	330	TA281208N	4
1200x1200x200	450	TA281212N	4
1500x1000x200	490	TA281510N	4
1500x1500x200	690	TA281515N	4
2000x1000x200	620	TA282010N	4
2000x1200x200	750	TA282012N	4
2000x2000x200	1180	TA282020N	6
2400x1200x200	850	TA282412N	6
3000x1500x200	1300	TA283015N	6
4000x2000x200	2300	TA284020N	8

FAQ Q: Are you trading company or manufacturer ?
A: Yes, We are manufacturer.Our factory are professional to produce welding equipments.

Q: Can I make customized for the 3D welding table?
A: Yes, the material and size can be changed as per your requests.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

---
