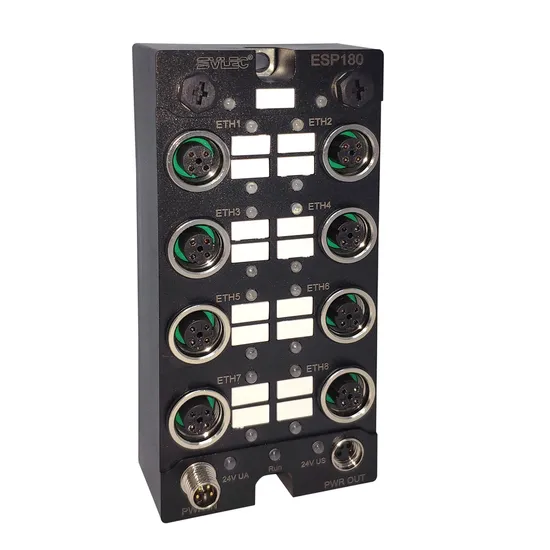

M12 D Code 8ports IP67 Industrial Unmanaged Network Switches for Automation Solutions

Product Description

The Ethernet switch equipment is used in the field of industrial control. Due to the adopted network standard, it is open, widely used, and inexpensive. Machines and systems become more and more closely networked. Ethernet-based automation solutions are gaining in importance as switches allow the implementation of flexible topologies.
SVLEC offers suitable components for networking the Ethernet modules economically and goal-oriented. Unmanaged switches are ideal for any network where configuration or diagnostic capabilities are not important. They are quick and easy to install and available in a large variety of styles. SVLEC IP67 M12 D coded 8 ports 10 / 100 Mbit/s Unmanaged Ethernet switch Technical data:

Product name	IP67 Ethernet switch 8 ports
Port	8*M12 Female D coded
Operating modes	Autocrossing Autonegotiation
Transfer rate	10/100/1000 Mbps full duplex
Transmission principle	Twisted pair
Transmit distance	100 m (Each part)
Mounting method	Wall installation
Power voltage	24 V DC (M8 male)
Power voltage range	9 V DC ... 32 V DC
Current consumption	40 mA (US=24 V DC)
Max current consumtion	40 mA (each port +10 mA)
Housing	Aluminum
Temperature range (working)	-25 ... 60°C
Temperature range (stocking/shipping)	-40...70°C
Humidity(working)	10...95%
Humidity(stocking/ shipping)	10...95% (without condensation)
Air pressure(working)	86 kPa ... 108 kPa (Altitude 2000 m)
Air pressure(stocking/ shipping)	86 kPa ... 108 kPa (Altitude 3500 m)
Protection	IP67
Dimensions(length× width×height)	50×150×24.6 mm
Electromagnetic compatibility	comply with the 2014/30/EU Electromagnetic Compatibility Directive
Type of test	Meets EN 60068-2-27 / IEC 60068-2-27 impact resistance standards
Test Results	Operation: 30 g, 6 ms continuous detection, 5g, 30 ms continuous detection

Dimension:
Our Company
Kunshan SVL Electric co., LTD., located in German industrial zone, kunshan city, jiangsu province, with a workshop area of 3000 square meters.We are innovative Scientific and technological enterprise integrating R&D, production and sales. SVLEC can provide automatic components such as connectors and wiring harness, heavy-duty connectors, servo wiring harness, panel interface, valve plug, cable entry system, magnetic switch, pressure switch, industrial LED lighting, bus module, etc.
SVLEC 's high-quality, innovative products are strictly tested in the laboratory and long-term user integration. Our laboratory fully conforms to the IEC 61984 & IEC 17025 construction standards. Our products have passed CE, TUV, UL certification successively. SVLEC provide reliable products and high-quality and efficient services for customers in the energy industry, process industry, infrastructure, factory automation and other industrial fields.
Certifications Packing & Delivery For product in stock, we will ship within 3-7 days.
For OEM product, please inquire.
Transport Package: PE bag/Bubble bag/Box→Carton→Pallet
Payment: T/T , 50% Deposit, 50% Balance Before Delivery. Trade term: EXW , FOB , CIF, CFR, DDU. Shipment: Express, air cargo, sea shipment. FAQ
1. Q: What is the necessary information needed for quotation?
A:The series(M8/M12/M23...),coding,male or female,pin number,cable material(PVC or PUR) color and length.
2. Q: What is the minimum order quantity(MOQ)?
A: Negotiable. We are manufacture there is no MOQ, large quantities can have a discount.
3. Q: What quality standard does SVL have?
A: ISO9001:2015, CSA.
4. Q:What product certifications can SVL provide?
A: IP67, UL, CE and RoHS.
5. Q: Sample lead time?
A: Normal 5 days. Customized connector need 2 weeks.
6. Q: Volume order lead time?
A: 2-3 weeks.
7. Q: Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
A: Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.
8. Q: How do you ship the finished product?
A: Based on the customer request.
9. Q: What kind of delivery terms or trade terms is available?
A: EXW, FOB, FCA HK, Telex releases are available.
If you have more questions, please feel free to contact us below, thanks!

---
