Yarn Knotting Machine for Jacquard Warp Knitting Machine From Cotex

Product Description

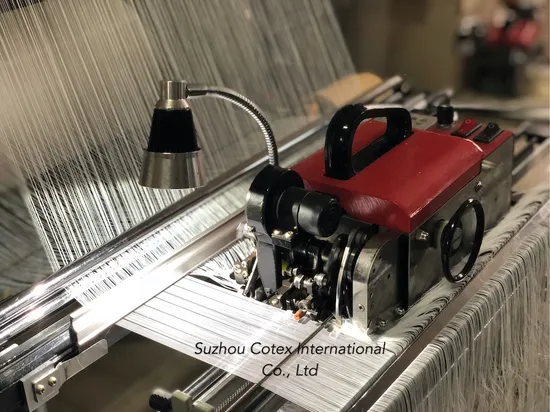

Our Knotting machine is designed for warp knitting machine, a very useful and highly efficient machine with small size, e.g, 10 mins is enough for a 21-inch width beam of whole process knotting and 2 mins is enough only for knotting, it is very suitable for machines with Jacquard or double needle bar machine. Knotting machines applicable to a wide variety of yarns, such as monofilament, filament, twisted yarn, elastic yarn, polyester, nylon, etc. The yarn count is suitable from 20D to 1000D. There are also a single knot model and double knots model, they are designed for different yarn.
Highly efficient small size lightweight Knotting machine is very popular in a warp knitting factory, it can help machine workers save a lot of time in replacing used up the beam, the operation is very simple and easy to learn, so the workers can easily master the machine operation skills, with a small size, it takes over a small space, so it is very convenient to move this knotting machine in the workplace, in all, it is a very convenient and easy and safe for operation machine.

Model - ML100
Suitable yarn - DTY
Match machine - HKS/KS

Model - ML200
Suitable yarn - FDY
Match machine - Raschel machine

Model - ML300
Suitable yarn - Monofil
Match machine - Lace machine

Model	ML100	ML200	ML300
Knot Type	Single knot	Single knot	Double knot
Yarn Count	20D-200 D	30D-1000D	20D-1000D
Beam Size	21"/21" , 21"/40" , 21"/30" , 42"/30"
Knotting Speed	150-300 knots/min
Stop control	Stop automatically when encountering obstacles
Knot length	0.5 cm	1.5 cm	2.2cm
Power parameter	24VDC ,3.5A
Handpiece weight	8.7 KG
Frame weight	25 KG

---
