Product Details
Product Description
Product Description
Product Description

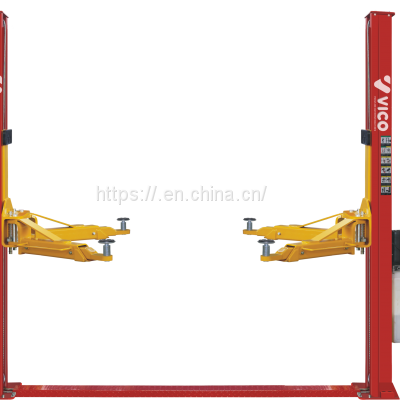

V-LZW-E-2140
(1) Floor design, suitable for the bottom not high in the auto repair.
(2) Adopt double cylinder, 4x4 higher and stronger chain, the wire rope balance system.
(3) Bilateral manual release.
(4) Rubber pad door-opening protection.
(5) Secure fence protect the toes.
(6) Rubber support pad adopts double helix adjustment height and height increase joint.
(7) Limit switch.
(8) The arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation.
Details
Technical specification
Product name
| Vico V-LZW-E-2140
|
Lifting Capacity
| 4000kg
|
Lifting Height
| 1850mm
|
Min. Height
| 120mm
|
Pass width
| 2500mm
|
Column width
| 2790mm
|
Total width
| 3320mm
|
Lifting Time
| 50s-60s
|
Motor Power
| 2.2kw-380v or 2.2kw-220v
|
Oil Pressure Rating
| 24MPa
|
Weight
| 590kg
|
Company profile
We mainly focus on offering auto body collision repair equipment and tools : Painting booths, auto body frame machines, car lifts , prep station, tire changer, tire balancer , wheel alignment machine, scissor lifts, measuring machine.
>>
