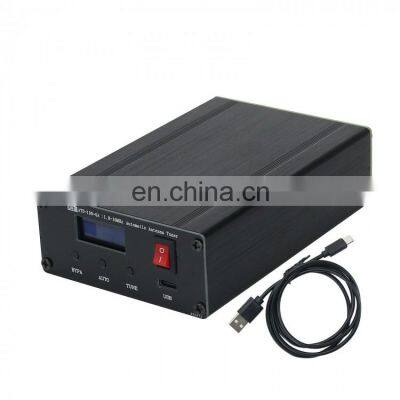

ATU-100-0A 1.8-30MHz Upgraded Version Automatic Antenna Tuner with Aluminum Alloy Shell Product Description Description:This assembled ATU-100-0A is an automatic tuning antenna. When installing and using it, please try to use a short coaxial cable to connect the short-wave machine to the in end of the antenna; use the out port to connect your antenna. When it detects that the tuned transmit power is reached and the standing wave value is greater than 1.3, the tuning can be started, and after the tuning is completed (within the ability of ATU-100-0A, if your antenna is not well matched, it will not be able to be reduced below 1.3, please adjust the antenna), you can perform high-power communication test. The finished board comes with a 128*64 OLED display screen, which takes into account power saving and display font coordination; please pay attention to the consistency of the data cable (dat clk) when installing the screen.Technical Parameter:- Allowable supply voltage range: 10-15V DC- Maximum current consumption: 400mA- Maximum working power: 100W- Maximum measurable power: 150W- Start to input tuning power: 5W (10W or more is recommended, and the maximum should not exceed 30W)- Minimum measurable power: 0.1W- Power measurement accuracy: 10%- Minimum load inductance value 0.05μh- Maximum load inductance value: 8.53μh- Minimum load capacitance: 10pf- Maximum load capacitance value: 1869pfPackage Included:- 1 x Set of Automatic Antenna TunerNote:- Its software version is v3.1.- With built-in lithium battery for usb 5v charging.- It is assembled and ready to use. Detail photo FAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Sample ususally take within 3 working days. Q3. Do you have any MOQ (minimum order quality)limit?A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item. Q4. How to proceed an order?A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link. Q5. After paid, what info of the supplier provided? A: Tracking number Q6: Do you offer guarantee and after-service for the products?A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate. Packing and ShippingPackage: Normally we use the standard paper package to export worldwide. Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present. 2. By chinese small parcel, usually for the customer to save the cost. But Chinese small parcel have the risk for lost parcel. Note: If we got the parcel back, we only can refund the item cost. If we didn't get the parcel,then sorry we can't refund any.3. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.4. By Sea: Delivery from the Shenzhen sea port . Company informationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery
>>
