Versatile Heavy-Duty Turning Lathes for Enhanced Production Efficiency

Product Description

Machine Picture
Machine Introduction
CK61125 Heavy-Duty Turning Lathes is a multifunctional CNC lathe developed on the basis of a large horizontal flat bed lathe. The bed is re optimized with the increased overall weight, lengthened, widened and thickened pallet, and the processing efficiency, accuracy and rigidity are better than ordinary CNC lathes.
Adopting a semi protective structure and equipped with a GSK 980TDi system. The main transmission of turning is automatic four speed continuously variable transmission, with two linked control axes.
The X and Z axes use ball screw pairs, AC servo motors, and precision reducers to achieve servo movement and semi closed loop control, with good positioning accuracy and repeatability.

This machine tool mainly consists of a bed body, headboard box, headboard box base, main motor and motor base, chuck, closed center frame, tailstock, tool holder, walking platform, hydraulic system, electrical system and CNC system, cooling system, functional components and random accessories.
Machine Applications
This machine tool is mainly capable of processing various internal holes, external circles, conical surfaces, circular arc surfaces, and threads within its processing range, and is particularly suitable for rough and precision machining of small and medium-sized shaft and disc parts.
Medium and large oil cylinders
Full process machining of wind turbine spindle
Drums in the paper industry
Crane wire rope drum
Cathode rod drum
Centrifuge drum
Efficient turning processing of precious metals such as high-temperature alloys, titanium alloys, steel ingots, rolling rolls, and laser cladding materials
Processing of thin-walled parts through processes such as external turning, internal boring, end face drilling, tapping, axial drilling, milling, etc

Machine Features
All HT300 castings bed frame, weight are 9500/ton;
Lengthened, thickened, and widened pallet slider, weighing 300 kilograms more than conventional products;
Can be equipped with a boring force seat for turning inner holes with a length to diameter ratio of 6:1 or less, with a single side of 5mm without vibration force for rough turning and up to 1.6 for fine turning.
Taking a processing length of 3 meters as an example, the total length of the bed is 5.7, and the length of the processed workpiece can reach 3 meters (taking the 3m specification as an example)
The headboard box is equipped with a hydraulic automatic four speed system (with a hydraulic station), weighing 1.6 tons, which is 200 kilograms heavier than the national standard.
Two units of 45 size linear auxiliary guide rail plus one box rail, ensuring that the tool does not vibrate when turning the maximum outer circle, and the cutting amount is large, ensuring accuracy.
The spindle diameter jump and end jump are both 0.01mm, while other manufacturers have 0.012. Bearings and spacers are customized
The X-axis screw has a specification of 5010 and the Z-axis has a specification of 8020, with stronger load-bearing capacity, rigidity, and durability Stronger accuracy retention.
Standard configuration includes Taiwan brand Intime, TBi, C3 level precision, while domestically produced products have P4 level precision, with a difference of one level

Machine Specifications

Guide rail width			755mm
Maximum turning diameter			Φ1250mm
Maximum workpiece length (outer circle of the vehicle)			20000mm
Weight of workpiece between two tips			6T/8T(limited speed when heavy workpiece)
Maximum workpiece rotation diameter on the tool holder			Φ850mm
Spindle
Rear bearing			Φ200/220mm(Optional)
Spindle speeds
4 stage stepless	1st gear	2nd gear		3rd gear	4th gear
Speed range	5~40 r/min	20~80r/min		40~150r/min	80~300 r/min
Shift form			hydraulic shift
Through-hole diameter			Φ130mm
Spindle bore taper			Metric140#
Spindle head			A2-15
Chuck size			Φ1000mm
Chuck form			manual four jaw, single action
Main motor
Main motor			22kW servo
Transmission form			C-type belt
Feed rate
X-axis travel			750mm
Z-axis travel (from chuck end face to tailstock end)			6750/7750/8750/9750mm
X-axis fast			4m/min
Z-axis fast			4m/min
Tool holder
Vertical 4 station tool holder			electric tool holder
model			LD4B-C6100
Tool holder edge			300×300mm
Section			40×40mm

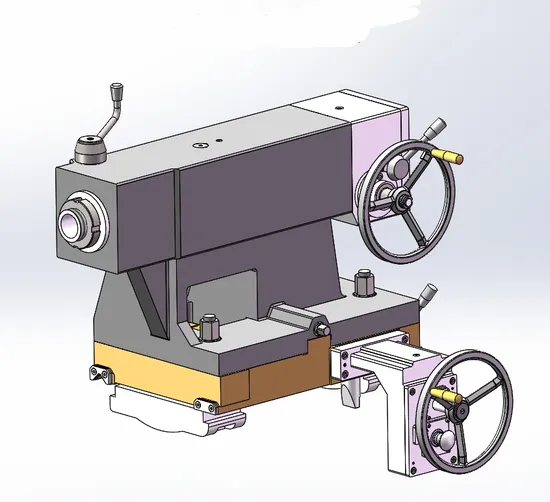

Tail stock
Mode			Manual
Mandrel diameter			φ160mm
Mandrel travel			300mm
Mandrel taper hole			Metric 80#
Overall movement form			Hanging/maneuvering

Machine Configuration

No	Name	Model	Quantity	Manufacturer
1	Spindle bearings(P5)	51144X	1	Havaló
		NN3032K	1
		N1036	1
		NN3040K	1
2	Screw Bearings	760206TBT	1	Havaló
3	hydraulic component	Siemens	1	Chinese brand
4	Servo main motor	22kW	1	Chinese brand
5	numerical control system		1	Siemens
6	motor driver		1	Siemens
7	Feed servo motors	16N.m,16N.m	1	Siemens
8	Electric knife holder	LD4B-C61100	1	Wenling Wenchang
9	ball screw		1	Chinese brand
10	Main electrical components		1	Drexel
11	Precision helical rack		1	Taiwan brands
12	Z-axis precision reducer		1	Taiwan brands
13	X-axis precision reducer		1	Chinese brand

---
