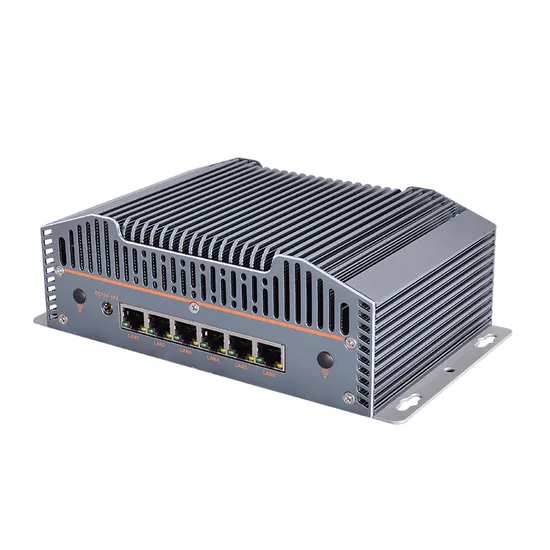

Intel 12th/13th Gen I3 I5 I7-1360p 6LAN Industrial Firewall Mini PC

Product Description

Customized 6Lan Gateway Computer Case 12th/13th Gen I5-1235U I7-1360P 2*DDR5 Industrial Pfsense Firewall Mini PC for Cyber Security Product DescriptionProduct Feature:Onboard Intel Core 12th/13th generation -U/-P series processor, TDP15W;2 x DDR5 SO-DIMM, total maximum 64GB;6 x 2.5G network (LAN1-5 x Intel i226-V, LAN6 x RTL8156B);TPM2.0, 2*M.2 2280 SSD, E-Key (WIFI/BT);HDMI2.0+DP, 1*Type-C (USB+DP)DC 12-19V, 90W; Size: 134x126x41mm. Product Specifications

Material	Aluminum profile, iron gray
Processor	Onboard Intel Core 12th / 13th generation -U/-P series processor, TDP15W
	EFI BIOS
Memory	2 x DDR5 SO-DIMM, total maximum 64 GB
Storage	1 x M.2 M-Key 2280 (PCIe 4.0 x 4)
	1 x M.2 M-Key 2280 (next to E-Key, PCIe 4.0 x 4/SATA3.0 protocol optional) Please note when placing an order
	1 x 2.5-inch SATA3.0, 2Pin 5V power supply
Display	1 x HD-MI2.0, 4K@60Hz
	1 x DP, 8K@60Hz
	Type-C interface (DP 8K@60Hz + USB3.2)
Board Edge I/O interface	DC JACK, 6 x LAN, 1 x HD-MI, 1 x DP
	4 x USB, TF card, Type-C (USB+DP)
	Switch button, reset button, 1 x CONSOLE
Extended interface/function	External TPM2.0 optional
	1 x E-Key (PCIe+USB2.0, WIFI/BT)
Power Supply	DC 12-19V, 90W
Working Environment	Working temperature: -20ºC ~ +60ºC; Working humidity: 5% ~ 90%
	Storage temperature: -40ºC ~ +85ºC; Storage humidity: 5% ~ 90%
Operating System	Windows10, Windows11, Linux
Size	216 x 123.6 x 67.5mm

Product Parameters
Company Profile
Certifications
Packaging & Shipping
Our Exhibition
FAQQ1: What is the Warranty for your pc?
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance. Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visit our factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples
Faster Express: DHL TNT UPS by air for samples and middle order
Reasonable Express: delivery by sea for large order
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.

---
