Tractor Propelled Lawn Wheel Rake Disc Rake

Product Description

Products Description
SHUOXIN 9L Series Rakes
SHUOXIN 9LZ 3.0 4D Rakes are produced with Single Wing with four wheels for the hay maker. Smaller size can fit smaller tractor, the working width still reach 3 meters.

The sturdy frame provides stability and reliability, yet is compact enough to move fast between farm and field.
Side

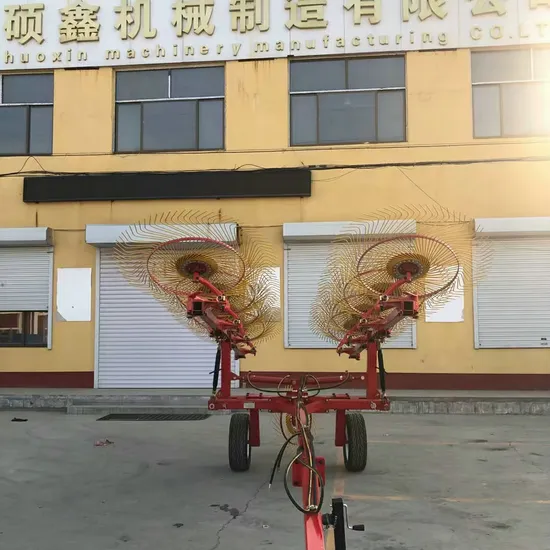

Front

Benefits and features The Shuoxin 9LZ 3.0 4D wheel rakes are the professional haymakers' choice. They offer high-volume haymakers the dependable, adjustable high-speed raking they need to put up quality hay quickly inall types of crop and field conditions.
Each rake wheel, suspended by an adjustable spring, uses an innovative compression spring and linkage pressure system. The rake wheel pressure can be finely adjusted to the crop and field conditions for the cleanest possible raking and added reliability as there are no chains or springs under tension that can work loose or fail. Specially curved rake-wheel arms provide more space for the hay to travel along the rake wheels without bunching to form a smooth, uniform windrow.

The uncomplicated Shuoxin folding design does not require a tractor with a hydraulic floating valve. Operators can rake on either side, turn over damp windrows, or select "/" raking with a turn of the hydraulic lock valves.
Details Images
Why choose SHUOXIN 9LZ 3.0 4D Series Rakes? As one of the industry-leading Rakes manufacturers, suppliers and exporters in China, Shuoxin deals in rich array of Rakes. They are widely used in the farming industry to deal with the grass and hay.
We have a dedicated team of highly experienced and skilled Rakes manufacturers who use state-of-the-art technology and tools along with high-grade material to deliver you best quality of Rakes. They are designed to connect with front bumper on tractors. Each Rake undergoes stringent quality checks at regular intervals to make sure that the product is strong. We are known worldwide for delivering Rakes within quick turnaround time and at industry-best prices.
ONE point trailer
One point linkage tractor trailer
Hydraulic Conditioner as Standard Configuration
Wing position and raking height can be adjusted by hydraulic lifting system
Strong Spring Steel Wheel, Two models available

Strong Iron Frame with painting

Huge stable wheel can support the trailer system


Enhanced triangle towing system

Product Paramenters

Model	9LZ 3.0 4D
Wheel Number	4
Raking width	3
Windrow width	1
Wheel Diameter (cm)	150
Dimension(mm)	4000*1800*2000
Weight(kg)	386
Matched Power (Hp)	30-70
Matched Rate (ha/H)	1-1.6
Hydraulic Hitch jack	Standard

Our Advantages
Advantages of SHUOXIN 9LZ 3.0 4D Series Rakes

Small size can fit smaller tractor

High-capacity design

Large raking wheels for added productivity

Quick field adjustments

Adjustable hitch to match wide array of tractor bar heights

Single tractor selective control valve (SCV) with double-acting valve

Individual wheel hub grease zerks

Wheel Rake vs Rotary Rake For Farming

Both wheel rakes and rotary rakes are used in farming for haymaking to collect and windrow cut hay into rows for further processing. Each type of rake has its own advantages and disadvantages, which farmers must consider when deciding which type of rake is best for their needs.

Wheel Rakes

Wheel rakes are traditional rakes that have been used for many years in agriculture. These rakes consist of a set of wheels with metal teeth that pull and rake the hay into windrows. The wheels come in different sizes, ranging from 8 to 12 feet, which allows for flexibility in hay production.

Advantages:

* Can handle heavy crops * Effective for handling small fields with obstacles * They are easy to operate * Less expensive than rotary rakes

Disadvantages:

* Can cause damage to the ground surface * Leaves the hay less clean * Requires more horsepower than a rotary rake * Need higher maintenance

Rotary Rakes

Rotary rakes are relatively new technology that uses rotating tines to gather and windrow hay. These rakes are designed to work faster and more efficiently than wheel rakes, with higher productivity rates.

Advantages:

* Can handle heavier crops with ease * Faster hay drying * Superior cleaning of the hay * Reduced ground contact * Lower maintenance requirements

Disadvantages:

* More expensive than wheel rakes * Requires more horsepower and fuel to operate * Not suitable for small fields with obstacles

In summary, the choice between a wheel rake and a rotary rake depends on various factors such as the farm size, the size and condition of the fields, the desired productivity rate, and the available budget. Wheel rakes are ideal for small farms, while rotary rakes are better suited for larger fields. In general, rotary rakes are more efficient and produce better quality hay, but they are more expensive and require more maintenance than wheel rakes.

Company Profile






Shuoxin, Sure thing.
Hebei Shuoxin Machinery Manufacturing Co., Ltd has been in the agricultural machinery industry for more than 30 years, the product range covering spraying machines, fertilizer spreaders, manure spreaders, mowers, rakes, land levellers and so on. In the 30 years' service for agriculture field, Shuoxin has grown into an enterprise that integrates multiple business modules such as Design, Manufacture, Service and Information Survey. Shuoxin agricultural machinery have done a important work to nutrition supply and plant diseases & insect pests control for crops such as wheat, cotton, corn, rice, orchards and vegetables. With the ISO System certificates and CE production certificates, Cooperating with Shuixin can guarantee the partners with advanced machine products, reduced labor cost, improved work efficiency and promoted product revenue.
Certifications
Product packaging
Iron Farme Packing
All the machines are fixed in the Iron Frame by steel wire, the Frame use the steel which is thicker than 3mm. Strong enough to carry and protect the machine.
Black plastic film will also protect the machine from rain and sun shine.

All the frames is welded according to the machine size, to make sure the minimum size and weight.
