Cost-Effective High Quality Low-Power Bluetooth module Switch TS-M1050

Product Details

Product Description

Product Description

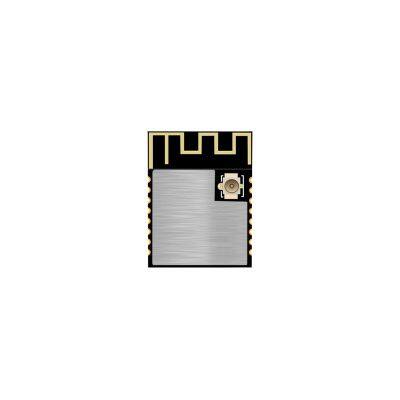

The TS-M1050 is a low-power Bluetooth module that operates on the Bluetooth 5.1 protocol, offering excellent stability and compatibility. The module supports direct Bluetooth system connections with seamless automatic reconnection, eliminating the need for an app. It features both momentary and latching modes of operation. Available with either a built-in or an external antenna option, it adapts to various project requirements.
Model No.: TS-M1050
Features
Bluetooth Version: BLE 5.1
Frequency Band: 2.402GHz-2.480GHz ISM band
TX Power: -20dBm~+10Bm
Receive Sensitivity: -95dBm
Air Rate: 250Kbps/1Mbps/2Mbps
Antenna: PCB Onboard / IPEX Antenna
Advise Range: 50m
Memory: 256KB FLASH+128KB RAM
Size: 20*15*2.3mm
Pin/GPIO: 21/13
Power Supply: 2.5~4.3V
Operating Temperature: -40℃~+105℃
Peripheral Interface: UART/I2C/ADC
Serial Transparent Transmission Rate: BLE 20KB/s
Applications
Smart door lock
Car keyless entry
Automatic induction switch

---
