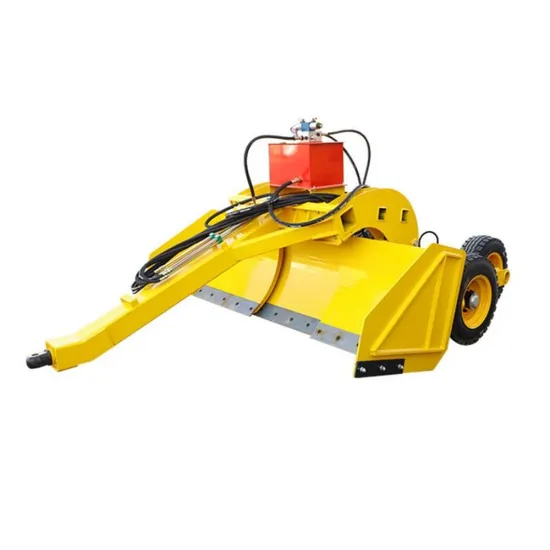

Hot Selling Land Levelling Machine Tractor 3 Point Hitch Land Road Scraper GPS Land Grader

Product Description

Product Description
Satellite grader is a farmland grader that uses satellite signals as feedback control. Its working principle is that the satellite base station receives high-precision positioning and elevation information, and sends differential data to the satellite receiver through radio mode. The vehicle level controller receives real-time radio broadcast data from the base station and obtains high-precision positioning and elevation information, which is controlled by the vehicle level. The main control panel of the device analyzes its differential data, calculates the real-time height of the actual satellite grader, and continuously sends signals to the controller. After receiving the height change signal, the controller will perform automatic correction. The corrected signal controls the hydraulic control valve to change the direction and flow of hydraulic oil to the cylinder, and automatically controls the height of the excavator to complete the ground leveling operation. The satellite grader mainly consists of a satellite antenna, a vehicle leveling controller, a satellite receiver, a satellite base station, a hydraulic system, and a leveling shovel.

Product Parameters

Model	Structure	Dimension (MM)	Working Width(MM)	Matched Power(KW)	Control Mode	Leveling Shovel Type	Tire Size	Weight (KG)	Working Area (Area/H)
12PW-1.5	Trail Type	2650*1600*1320	1500-2200	50.4-80.9	Satellite Control	Straight Shovel	23*8.50/12	1150	3.5
12PW-2.5	Trail Type	4000*2614*1350	2500-3200	102.9-154.4	Satellite Control	Straight Shovel	10.0/75-15.3	1440	5
12PW-2.8	Trail Type	4000*2930*1350	2800-3500	102.9-154.4	Satellite Control	Straight Shovel	10.0/75-15.3	1480	6
12PW-4.0	Trail Type	4800*2650*1700	2500-4000	154.4-180.5	Satellite Control	Straight Shovel	10.0/75-15.3	2600	8
12PW-2.5	Trail Type	4000*2610*1350	2500	80.4-102.9	Satellite Control	Straight Shovel	10.0/75-15.3	1150	4
12PW-3.0	Trail Type	4300*3120*1650	3000	102.9-154.4	Satellite Control	Straight Shovel	31*15.5-15	1980	5
