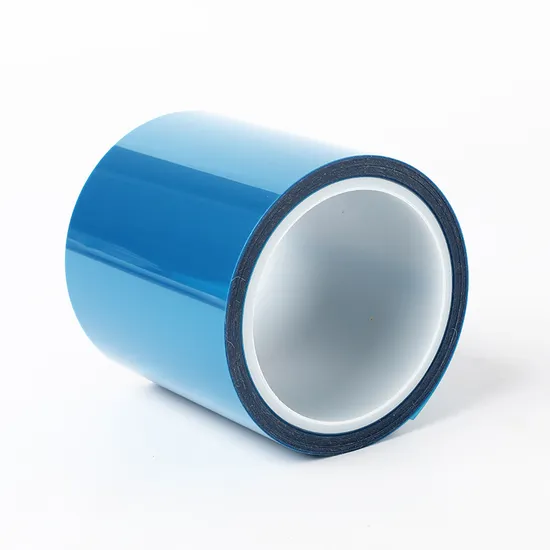

Manufacturer Wholesale Thickness Release Roll Dahua Blue Pet Film

Product Description

Test items	Standard value	Testing standards	notes
Base material	PET	ASTM D3652	/
Color	Blue	/	/
Appearance	No dirt, wrinkles, scratches	visualization	/
Thickness	6-10g/20-30g/40~50g/in	Dial gauge thickness testing machine	/
Surface Resistivity	10°-10"22.m	SURFACE RESISTANCE TESTER	/
Residual adhesion rate	≥90%	Nippon 31B tape	/
Tensile strength	MD	188MPa	ASTM D882
	TD	215MPa
elongation at break	MD	198%	ASTM D882
	TD	147%
The above test data is the average test value, not a guaranteed value, for reference only, and not used as an acceptance standard

Product composition
This release film is made of blue PET (polyester film) as the base material and coated with silicone oil release agent on the surface of PET film
Product characteristics
1. It is produced in Class 1000 dust-free workshop with excellent appearance;
2. The material has moderate hardness and is easy to die cut and punch;
3. The coating is uniform and the release force is stable and small;
4. Blue PET is used as the base material, which is specially used in die-cutting and punching fields.
Product specification
1. Width: 1090mm (customizable according to customer requirements)
2. Length: 200-3000m (slitting and rewinding according to customer requirements)
3. Inner diameter of coil core (paper tube or plastic tube): 3 inches (76.2 mm) or 6 inches (152.4 mm)
Scope of application
Product packaging
1. Products are generally packed in cartons and wooden pallets
2. Each box of products has a shipping label, and each pallet has a product list
3. It can also be packaged according to the customer agreement
instructions
1. In order to obtain the best use effect, it is recommended to use this product within 6 months from the purchase date;
2. It must be retested before use after expiration;
3. Recommended storage conditions: avoid direct sunlight, store under the indoor ambient temperature of 25 ºC ± 2 ºC and humidity of 60% ± 10%.
4. When using this product, please fully study whether the purpose (purpose, condition) is suitable or not in advance, and decide whether the product conforms to its standard by yourself. The content beyond the specification cannot be guaranteed.

---
