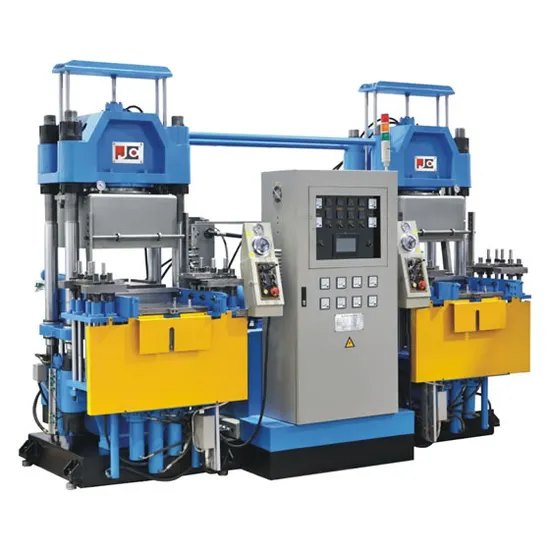

Automatic Vacuum Vulcanizing Rubber Moulding Press /Rubber Vulcanizing Machine

Product Description

Product Description Compression Moding Machine is one of our main products,"Geekung" is now the famous brand in China for rubber&silicone vacuum compression molding press,made with premium components and strict QC management,featuring high quality&reliable operation,durable service life,our rubber compression molding machine are being sold very popular across China,enjoying good reputation,we are now also expanding our overseas market.
APPLICATIONS: Ideal for the production of making packing O-rings,keyboards,rubber medical products,etc.
Features for our rubber&silicone vacuum compression molding press:
The vacuum suction hood provides highly efficient vacuum suction effect for the entire mold inside the working platen, suction speed of 700HG/2 sec. The unit offers simplified construction, easy to operate and maintain, with fast mold change. Our compression molding press is installed with integrated hydraulic circuit providing various pipe functions on the circuit boards, reducing piping to a minimum. The oil cooler ensures long service life of the circuit valve. The motion time, traverse and number of motions can be conveniently set on the control panel to meet product variations, ensuring production quality made by the compression molding machine. Combines two molding units in one machine, which can be operated separately. While in vulcanization molding operations, the hydraulic pump motor can be set for running, or stopped for power saving. The electric system is controlled by the PLC controller, allowing for easy operation and accurate adjustment. An emergency switch provides added safety for the mold and the operator. Technical specification:

Clamping Force (ton)	Main Ram Diameter (mm)	Heating Platen size(mm)	Bolster Plate (mm)	Stroke of Main Ram (mm)	Daylight (mm)	Power Consumption (single) (kw)	Power Consumption (Double) (kw)
100	Ø250	405x430	included	250	300	14.0	24.3
150	Ø300	450x480	included	250	300	16.4	32.8
200	Ø355	505x510	included	250	300	23.1	42.4
250	Ø400	570x610	included	250	300	25.8	47.8
350	Ø457.2	700x700	included	250	300	25.8	47.8
500	Ø560	700x700	included	250	300	29.5	59.0
		850x850				40.0	80.0
		1000x1000				49.6	99.2

Notes: the form only list out the normal standard model, more special models can be customized to order. Exhibition
Packaging & Shipping The rubber vulcanizing press machines are packaged well by the stretch film first,and fixed professionally by the strong (solid) steel wire ropes,ensuring the machines remain still and won't slide in the container during the long distance of land and sea transportation, and reach the clients factories safely.
After Sales Service We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".
It is our promise and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.

---
