1u Digital Amplifier Professional Stage Audio Power Amplifier

Product Description

Product Description

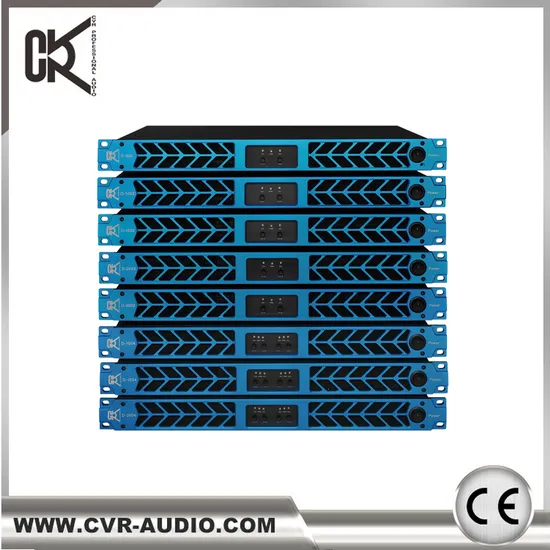

D-series power amplifiers are employing the mature and efficient D circuit design and using high quality and reliable components. They have 8 different models, rated from 800W(8ohm) to 3000W(8ohm).Compact and light weight with 1U small size, D-series amplifier have a complete and high speed protection system in case of overheating, overloading, DC output etc. Each model includes independent logic wide range power supply, which are designed to provide a great solution for all kinds of power requirements.

Model	D-3002	D-2004	D-1504	D-2002	D-1502	D-1004	D-1002	D-802
8Ω/Stereo	2×3000W	4×2000W	4×1500W	2×2000W	2×1500W	4×1000W	2×1000W	2×800W
4Ω/Stereo	2×5100W	4×3400W	4×2550W	2×3400W	2×2550W	4×1700W	2×1700W	2×1360W
2Ω/Stereo	2×7140W	4×4760W	4×3570W	2×4760W	2×3570W	4×2890W	2×2890W	2×2310W
16Ω/Bridge	6000W	2×4000W	2×3000W	4000W	3000W	2×2000W	2000W	2×1600W
8Ω/Bridge	10200W	2×6800W	2×5100W	6800W	5100W	2×3400W	3400W	2720W
4Ω/Bridge	14280W	2×9520W	2×7140W	9520W	7140W	2×5780W	5780W	4620W
Output RMS voltage RMS	154.9V	126.5V	109.5V	126.5V	109.5V	89.4V	89.4V	80.0V
Slew rate	50V/us	50V/us	50V/us	50V/us	50V/us	50V/us	50V/us	50V/us
Sensitivity	Selectable					Selectable
	41dB					38dB
	38dB					35dB
	35dB					32dB
	32dB					29dB
THD+N	0.01%	0.01%	0.01%	0.01%	0.01%	0.01%	0.01%	0.01%
IMD-SMPTE	0.01%	0.01%	0.01%	0.01%	0.01%	0.01%	0.01%	0.01%
DIME30	0.01%	0.01%	0.01%	0.01%	0.01%	0.01%	0.01%	0.01%
Cross-talk	≥90dB	≥90dB	≥90dB	≥90dB	≥90dB	≥90dB	≥90dB	≥90dB
Frequency response	±0.2dB	±0.2dB	±0.2dB	±0.2dB	±0.2dB	±0.2dB	±0.2dB	±0.2dB
Input impedance	0kΩ(Balance), 10kΩ(Unblance)
Damp factor	≥5000
SNR	≥115dB	≥112dB	≥110dB	≥110dB	≥110dB	≥110dB	≥110dB	≥110dB
Main power	90~260VAC, 50~60Hz
Protection	Under voltage, DC, temperature, over load limiter, Short protection
Size (W×H×D)	483×44×465mm			483×44×370mm
Net weight	12kg	12kg	12kg	9kg	9kg	9kg	9kg	9kg

Detailed Photos

Company Profile
Certifications
Exhibition
Production Flow
Packaging & Shipping
FAQ
Q1. Can we have our logo or company information on your profucts or packages?
A1: Sure. We accept OEM/ODM orders. Your logo can be shown on the products by printing, embossing etc. Just let us know your requirements. Q2. Are you a pro-audio manufacturer or trade company? A2: We are a 100% manufaturer located in Guangzhou, Sountheast China. We specialize in R&D, manufaturing, sales, system integration and technical support in live sound industry. Q3. What is thee warranty period of your products? A3: All our CVR products have one year free warranty. And if goods are damaged on arrival, free replacement will be arranged. We also provide a very competitive policy for policy for spare parts, which makes sure your systems will run smoothly. Q4. How about the lead time? A4: About 3 days for products in stock; About 15 days for big quantity or special models, please contact our sales for more details. Q5. What is the MOQ?How can i pay? A5: Our MOQ is 2 pieces; We accept cash, T/T, Weatern Union and ****** trede assurance is most welcome.

---
