Basic Info.
Type
Tool Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Program Control
Certification
CE, ISO 9001
Work Space Dimensions
800*400mm
Vertical Table Dimensions
1020*225mm
Table Load Capacity
200mm
Speed Range
(2)40-2000rpm
Transport Package
for Metal
Production Capacity
50/Month
Product Description
Product Description
1. Automatic lubricator and cooling system
2. CE S-chneider electric
3. Servo motors and ballscrews on X,Y and Z axes
CNC CONTROLLER---OK,OPTINAL ACCESSORIES
Product Parameters
| Specification | Unit | XL8132 | XL8140 | XL8145 |
| Work space dimensions | Mm | 750*320 | 800*400 | 850*450 |
| Vertical table dimensions | Mm | 890*225 | 1020*225 | 1190 * 250 |
| T-slots,work table | Mm | (5)14*63 | (6)14*63 | (7)14*63 |
| T-slots,vertical table | Mm | (3)14*63 | (3)14*63 | (3)14*63 |
| Table load capacity | Kg | 160 | 200 | 300 |
| travels | Longitudinal(X) | Mm | 405 | 500 | 600 |
| Transverse(Y) | Mm | 305 | 400 | 450 |
| Vertical(Z) | Mm | 400 | 400 | 450 |
| Spindle axis-to-table surface distance | Horizontal spindle | Mm | 145-545 | 145-545 | - |
| Vertical spindle | Mm | 50-450 | 50-450 | - |
| Speed range | Rpm | (2)40-2000 | (2)40-2000 | (2)40-2000 |
| Spindle mount | | ISO40 | ISO40 | ISO40 |
| Feeds X Y Z axis | Mm/min | 10-1000 | 10-1000 | 10-1000 |
| Rapid feed | Mm/min | 1200 | 1200 | 1200 |
| Quill stroke | Mm | 60 | 60 | 60 |
| Main motor rating | KW | 3.7 | 3.7 | 3.7 |
| Feed motor rating | N.M | 7.7/7.7/10 | 7.7/7.7/10 | 2010/10/15 |
| Dimensions (L*W*H) | Mm | 1500*1700*1800 | 1500*1700*1800 | 1600*1800*2000 |
| weight | Kg | 1400 | 1500 | 1700 |
| Standard Equipment | specification |
| Milling Arbors | Φ-16,22,27,32mm |
| Reducing sleeves | MT1,2,3 |
| Collet chuck with collets | 2,3,4,5,6,8,10,12mm |
| Draw bar | |
| Coolant system | |
| Chip collector tray | |
| Oscillation elements | |
| Outer arbor support for horizontal milling | |
| Work lamp | |
| Operating instructions | |

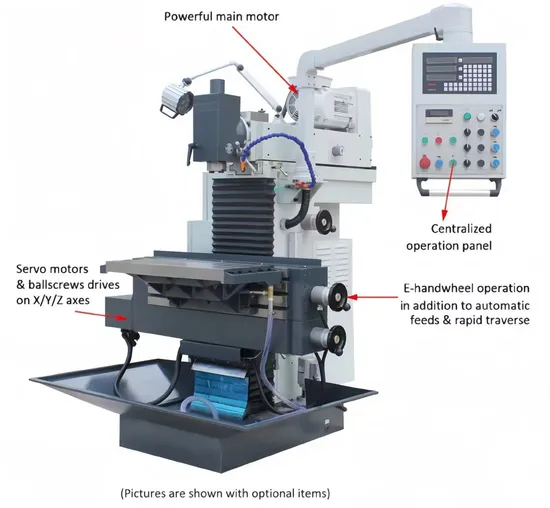

Detailed Photos
High Flexibility
Combination of H & V spindles
Designed with flexible modules
ldeal for workshop & training
High Accuracy
Variable spindle speeds in 2 steps
Servo motors on X, Y and Z axes
Ballscrews on X, Y and Z axes
High Efficiency
Centralized operation panel
E-handwheel or AUTO operation
Automatic lubrication
Company Profile
Packaging & Shipping
Standard package :
Full wooden case for sea
support shipping mark
support 'EAC'mark
>>
