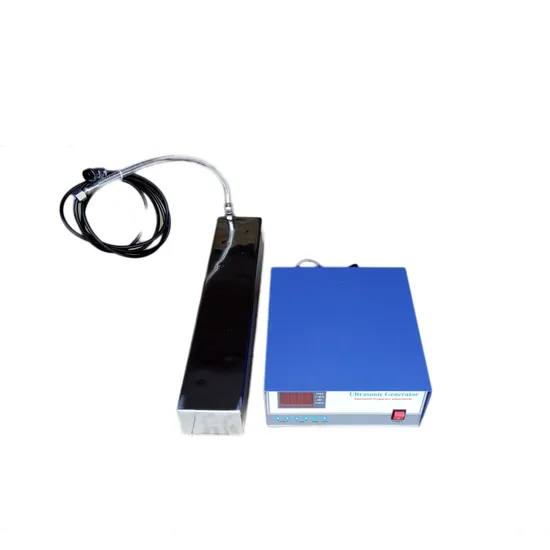

Durable Ultrasonic Cleaner Machine Immersible Type Transducer 40khz/80khz/120khz
Ultrasonic vibration plate is also called ultrasonic vibration box or ultrasonic cleaning box. It is an ultrasonic cleaning device composed of ultrasonic vibrator and ultrasonic generator, which is bonded and sealed in stainless steel box. Generally placed in various cleaning tanks to achieve the purpose of ultrasonic cleaning. The vibration plate size and the lead tube direction can be made into bottom vibration type, side vibration type and top vibration type according to different installation positions, so as to achieve the effect of thorough cleaning with different use requirements. It is applicable to electronic parts, electroplating hardware, auto parts, optical lenses, jewelry, glassware, filter element, spinneret, medical equipment, etc.
1. The ultrasonic vibration plate is composed of vibration plate and ultrasonic generator. When the standard model of ultrasonic cleaning machine is not suitable for the specific working environment, in addition to the special specifications can be customized. It can also be modified into ultrasonic cleaning machine by using input type vibrating plate device, so as to save equipment cost and achieve cleaning effect.
2. The shock plate is made of all stainless steel structure, alkali and acid resistant, and the surface of the shock plate is plated with hard chromium. The ultrasonic transducer adopts high-quality and high-performance products with high efficiency of electroacoustic conversion.
3. It adopts the split structure, and the high frequency wire with socket is used between the vibration plate and the ultrasonic generator, which is convenient for use and maintenance.
4. The installation layout is flexible, and the ultrasonic radiation surface can be arranged at the bottom, side or top of the cleaning tank according to the needs.
5. Ultrasonic vibration plate can be customized according to the customer's requirements. It is suitable for cleaning before electroplating parts, clock parts, hardware and mechanical parts, polyester filter element, semiconductor silicon wafer, tools, lenses, spectacle frames, jewelry, glass, utensils and other industries, and widely used.
| Model | Power | Frequency |
| OKS-HJQXDY---300W | 300W | 20KHZ,25KHZ,28KHZ,30KHZ,33KHZ
40KHZ,54KHZ,68KHZ,80KHZ,100KHZ,125KHZ
,200KHZ |
| OKS-HJQXDY---500W | 500W | 20KHZ,25KHZ,28KHZ,30KHZ,33KHZ40KHZ,54KHZ,68KHZ,80KHZ,100KHZ,125KHZ |
| OKS-HJQXDY---800W | 800W | 20KHZ,25KHZ,28KHZ,30KHZ,33KHZ40KHZ,54KHZ,68KHZ,80KHZ,100KHZ,125KHZ |
| OKS-HJQXDY---1000W | 1000W | 20KHZ,25KHZ,28KHZ,30KHZ,33KHZ40KHZ,54KHZ,68KHZ,80KHZ,100KHZ,125KHZ |
| OKS-HJQXDY---1200W | 1200W | 20KHZ,25KHZ,28KHZ,30KHZ,33KHZ40KHZ,54KHZ,68KHZ,80KHZ,100KHZ,125KHZ |
| OKS-HJQXDY---1500W | 1500W | 20KHZ,25KHZ,28KHZ,30KHZ,33KHZ40KHZ,54KHZ,68KHZ,80KHZ,100KHZ,125KHZ |
| OKS-HJQXDY---2000W | 2000W | 20KHZ,25KHZ,28KHZ,30KHZ,33KHZ40KHZ,54KHZ,68KHZ,80KHZ,100KHZ,125KHZ |
| OKS-HJQXDY---2600W | 2400W | 20KHZ,25KHZ,28KHZ,30KHZ,33KHZ40KHZ,54KHZ,68KHZ,80KHZ,100KHZ,125KHZ |
| OKS-HJQXDY---3200W | 3000W | 20KHZ,25KHZ,28KHZ,30KHZ,33KHZ40KHZ,54KHZ,68KHZ,80KHZ,100KHZ,125KHZ |
| | | |
