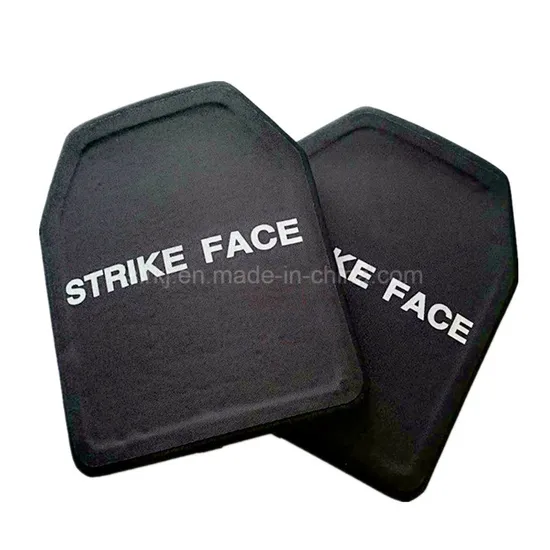

Nij Level 3 / IV Aluminum Oxide Bulletproof Armor Plate

Product Description

NIJ Level 3 / IV Aluminum Oxide Bulletproof Armor Plate * Ballistic Material for the Plates:
Ceramic Tiles & Laminated UHMW-PE Backing Plate
* Weight: 2.0-3.5kg per plate (we can provide you different armor solutions for your specific needs)
* Applications: hard armor plates are being widely used for Bulletproof Vest, ballistic shield,school backpack,bulletproof wall and door,vehicle armor,vessel armor and etc..
* Ballistic Protection Performance: certified NIJ-STD-0101.06 level III / III+ / III++ against theats like 5.56mm SS109/ M193 and 7.62mm M80 NATO Ball / AK47 MSC ,multi-hits capabilities.
* Construction
i) ICW.(short for In Conjuction With),means the HARD armor plate has to be used along with a level IIIA or lower threat SOFT armor panel to perfectly protect against the III/IV rating threats,which actually lighter than SA. plates but not tough enough
ii) SA.(short for Stand Alone),means the HARD armor plate can protect against the III/IV rating threats without any SOFT armor panels.♥Popular♥
* Plate Sizes(Width×Length)
-For Torso: 250mm×300mm(10×12″)♥Popular♥, 280×360mm (11×14″)/ custom size
-For two sides: 150*150mm(6×6″),150*200mm(6×8″), 200*200mm(8×8″) / custom size
-For vehicle/vessel armor :500*500mm, 700*700mm, 1100*1100mm, 1500*1500mm / custom size
* Plate Curvature: single curved /multi curved /flat
* Plate Cut Style :shooters cut / Square cut / SAPI cut / ASC /upon request
* Outer Cover Processing
i) Textile cover:durable black colored water proof nylon fabric padded with foaming cloth on the edges of the plates(Standard Option)
ii) advanced Line-X( polyurea) coating finish all around the plate surface which provides matchless fragmentation/ shrapnels absorption performance without secondary damage (Premium Option)
>> Standard Plates Specs(SAPI CUT, 250*300mm)

Type	Threat Level	Model No.	Weight (kg)	Dimensions (mm)
AL2O3+PE	NIJ-STD-0101.06 Level III STAND ALONE	LY-APCB3-D	2.1	250*300*18
SIC+PE		LY-SPCB3-D	1.8	250*300*20
100% PE		LY-P3-D	1.5	250*300*23
AL2O3+PE	NIJ-STD-0101.06 Level III ICW. NIJ IIIA.44Magnum Soft Armor Panel	LY-APCB3-X	1.7	250*300*16
SIC+PE		LY-SPCB3-X	1.5	250*300*16
100% PE		LY-P3-X	1.4	250*300*21
AL2O3+PE	NIJ-STD-0101.06 Level IV STAND ALONE	LY-APCB4-D	2.8	250*300*22
SIC+PE		LY-SPCB4-D	2.3	250*300*22
AL2O3+PE	NIJ-STD-0101.06 Level IV ICW. NIJ IIIA.44Magnum Soft Armor Panel	LY-APCB4-X	2.65	250*300*20
SIC+PE		LY-SPCB4-X	2.1	250*300*20
