Automobile Exhaust Gas Analyzer Price Multi Exhaust Gas Analyzer

Product Description

Automobile Exhaust Gas Analyzer Introduction



1)SV-5Q automobile exhaust gas analyzer(hereinafter referred to as the analyzer) may, in accordance with NDIR (Non-Dispersive Infra-Red) method, via micro-computer analysis, directly measure the thickness of HC, CO and CO 2 in the exhaust gas of vehicles and inspect the density of NO and O2 via Electrochemical sensor so as to calculate excess air coefficient λ.zmwm07

2)It is composed of complete imported machinery cores, boasts the advantages of accuracy measurement, high endurance and speed. As an Intelligent Equipment, it is equipped with Microprocessor, LCD and Chinese language interface. Besides, it also has optional equipments such as Induction Tachometer, temperature sensor, inner Micro Printer for customers to purchase.
The newly-added Storage function can detect Engine's speed and Lubricant's Temperature while measuring tail gas, then store and print the results.

3)Besides detecting functions, its computer programs on detection under Two-speed Idle, written by us according to (limits and measurement methods for exhaust pollutants from vehicles equipped ignition engine under two-speed idle conditions and simple driving mode conditions), can control the process of detection automatically, so it's convenient to use.

4)The analyzer has small size, light weight, storage of 500 groups' data of exhaust gas measurements. Particularly it is suitable for checking along the road. It's utilized for auto-manufacturing factories, vehicle inspection stations and garages.

Automobile Exhaust Gas Analyzer Parameter

	exhaust gas analyzer
measuring range	CO:0~10.0 10-2(%) CO2:0~20.0 10-2(%) HC:0~10000 10-6(ppm) O2:0~25.0 10-2(%) NO:0~5000 10-6(ppm) Choose: oil temperature:18ºC~150ºC speed:100~20000rpm
Repeatability error	≤±2%
Zero drift	CO:±0.06 10-2(%)/4h CO2:±0.5 10-2(%)/4h HC:±30 10-6(ppm)/4h O2:±0.1 10-2(%)/4h NO:±25 10-6(ppm)/4h
Distance drift	No more than the permissible error value(4 hours)
Indication error	CO:±5%(absolute error,±0.06 10-2 ) CO2:±5%(absolute error,±0.5 10-2) HC:±5%(absolute error,±12 10-6 )±5%(absolute error,4001~10000ppm) O2:±5%(absolute error,±0.1 10-2) NO:±4%(absolute error,±25 10-6)
environment condition	oil temperature:±2ºC(relative error) speed:±1.0%(relative error) temperature:0ºC~40ºC humidity:≤80% atmospheric pressure:60~105KPa Power Supply:AC 220V±10%;50Hz±1Hz
Preheating time	10min
Weight	10Kg
Volume	460 * 315 * 225mm
Sampling method	tail gas : Direct sampling,Sampling tube length 5m,Sampling probe length 900mm; oil temperature:The temperature measuring head is inserted into the bore of the engine oil gauge,insert lengthsame with length,block the plug by rubber,in case of oil spray,conductor length:5m; speed:Put the speed clamp on tachometer on a high tension cord of a gasoline

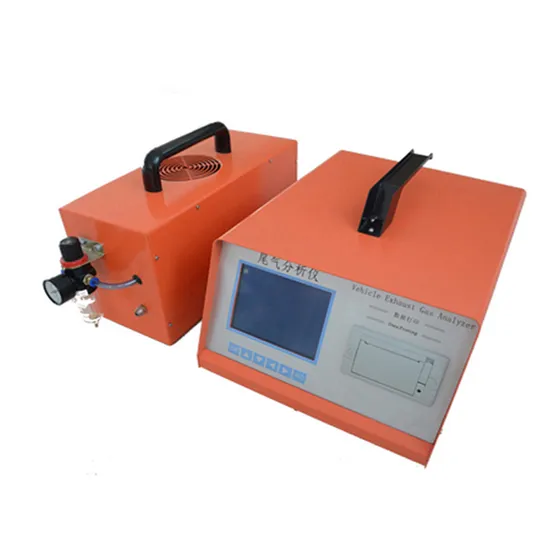

Automobile Exhaust Gas Analyzer Photos

---
