Genie S65 Small Man Lift Electric Battery Drive Articulating Boom Lift

Product Description

Pay Attention please!
Our company mainly sells used sanitation trucks! Different prices for different years! Please contact us for details!
Used Genie S-60 20M 4x4 Telescopic Boom Aerial Work Platform 227kg (500 lbs.) Load Capacity Boom Lift
Scissors Lift Aerial Platform Heavy Duty Picking Machine Scissor Lift is driven by hydraulic principle. Hydraulic motor supply power for driving and lifting. It is different drive model with Electrical drive. Hydraulic self propelled scissor lift is famous for its high precision, great sensitivity, low ware and lower noise.
Scissors Lift Aerial Platform Heavy Duty Picking Machine Scissor Lift have longer running time and move under working conditions at heights and complete up and down, forward, backward, steering and other tasks on the operating platform in the air.They are welcomed by Sino's economic prices and superior quality and best after-sales service.
Genie® S-65 Traxx telescopic boom aerial work platforms offer excellent horizontal reach and off-road performance. They are equipped with a fixed, four-point track system that allows contractors a smooth, nimble ride over many demanding terrain conditions such as mud, soft ground, sand and snow at any time of the year.
Product Parameters

M00ELS	S-60		S-65
Workingheight maximum*	66t	20.3m	71t	21.80m
Platform height maximum	60t	18.30m	65 t	19.80m
Horizontal reach maximum	50ft10 in	15.48m	56t2 in	17.10m
Below ground reach	5ft7in	1.70m	8ft11 in	2.72 m
APlatform length -8ft model Platform length -6 ftmodel	3ft 2 ft6 in	91 m 76m	3ft 2ft6 in	91 m 76m
B Platform width -8ft mode	8ft	2.44m	8ft	2.44m
Platform width -6ft model	6ft	1.83 m	6ft	1.83 m
C Height-stowed	8ft11 in	2.72 m	8ft11 in	2.72m
0Length-stowed	27ft11 in	8.51 m	31ft2 in	9.50m
Length-transport (jb tuckedunder)			25t	7.60m
EWidth (with standard tires)	8t2 in	2.49 m	8ft2 in	2.49 m
FWheelbase	8ft2.5 in	2.50m	8ft2.5 in	2.50 m
G Ground clearance-center	1ft2.5 in	.37m	1ft2.5 in	.37m
PR0DUCTIVITY
Lit capacity	500 lbs 227 kg		500 lbs 227 kg
Platform rotation	160°		160°
Vertical jib rotation			135°
Turntable rotation	360°continuous		360°continuous
Turntable tailswing	4ft 1.22m		4ft 1.22 m
Drive speed-2WD stowed	4.0 mph 6.4 km/h		4.0 mph 6.4 km/h
Drive speed-4WD stowed	3.0 mph 4.8 km/h		3.0 mph 4.8 km/h
Drive speed-raised or extended	0.68 mph 1.1 km/h		0.68 mph 1.1 km/h
Gradeability -2WD-stowed**	30%		30%
Gradeability -4WD-stowed**	45%		45%
Turning radius-inside	7 ft9 in 2.36 m		7 ft9 in 2.36 m
Turning radius -outside	18ft2 in 5.54 m		18ft9 in 5.72m
Controls	12VDCproportional		12VDCproportiona
Tires -RT Lug	355/55D 625		355/55D 625
POWER
Power source	Ford DSG-423.4 cylinder gas/LPG 75 hp (56 kW) Deutz D2011L03i 3 cylinder diesel 46 hp (34.3 kW) 404D-224 cylinder diesel 51 hp (38 kW)
Auxiliary power unit	12VDC		12VDC
Hydraulic tankcapacity	45 gal 170L		45 gal 170 L
Fuel tank capacity	35 gal 132 L		35 ga 132 L
WEIGHT
2WD	20,520 lbs	9.308 kg	22,100 lbs	10.024 kg
4WD	20,690 lbs	9,385 kg	22,270 lbs	10,102 kg

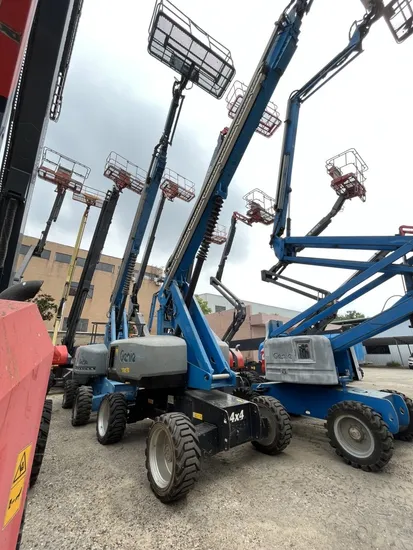

Detailed Photos


Company Profile
Wuhan Ring Valley Environmental Technology Co., Ltd. specializes in providing total service solutions for sanitation equipment, and offering customers idle asset revitalization and used vehicle export business. Our Company is headquartered in Wuhan with a team mainly comes from Zoomlion, XC MG, and Sa ny. We have not only accumulated profound professional knowledge in technology, service, market, equipment and other aspects, but also deeply understood the differences in product usage and demand between domestic and international customers, that to provide the best products and services to our customers.
Through many years of efforts, we have become a leading supplier of used sanitation trucks in China and the world evenly. Buy used sanitation trucks and construction machinery, come to ringtruck!

FAQ
1. Q: How about the quality of your trucks?
A: Wuhan Ring Valley Environment mainly sells medium and high-end sanitation trucks, no matter the chassis, engine and so on are all belong to the top equipment. Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates.
2. Q: Is there any advantages of your price?
A: We don't only have new truck but a large selection of used trucks. Different products in different years are available at different prices. We'll be sure to help you find the best vehicle in suitable price.
3. Price term: FOB, CIF.
4. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
5. Delivery time: 7-20 working days after payment is received.
6. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
If you have any other questions, please feel free to contact us at any time.

---
