Product Details
Product Description
Product Description

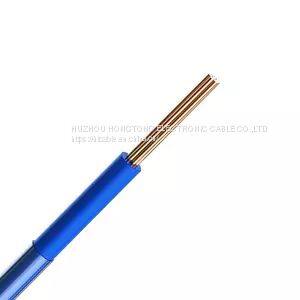

THHN Wire has a conductor of soft drawn bare copper.
· THHN Wire has primary insulation of PVC with NYLON jacket.
· USA listed Stds. 83 & 1063 as: Type THHN Wire 90°C in dry locations, Type THWN Wire 75°C in wet locations.
· Gasoline and oil resistant II. Type MTW 90°C Machine Tool Wire (stranded only) 105°C AWM, 80°C where exposed to oil.
· CSA approval available upon request for the building wire.
SIZE
| Conductor structure
±0.01mm
| cable diameter±0.1mm
| jacket material
| insulation material
| approx.cross sectionarea
(mm2）
| PVC insulation thickness
±0.05mm
| Nylon thickness±0.05mm
| approx.weight(kg/km)
|
8AWG
| 19/0.75
| 6.2
| NYLON
| PVC
| 8.39
| 1.0
| 0.2
| 104.35
|
9AWG
| 19/0.67
| 5.8
| NYLON
| PVC
| 6.7
| 1.0
| 0.2
| 86.24
|
10AWG
| 19/0.59
| 5.4
| NYLON
| PVC
| 5.19
| 1.0
| 0.2
| 69.95
|
11AWG
| 19/0.53
| 4.7
| NYLON
| PVC
| 4.19
| 0.8
| 0.2
| 54.75
|
12AWG
| 19/0.47
| 4.4
| NYLON
| PVC
| 3.3
| 0.8
| 0.2
| 45.00
|
13AWG
| 7/0.69
| 4.1
| NYLON
| PVC
| 2.62
| 0.8
| 0.2
| 37.5
|
14AWG
| 7/0.61
| 3.9
| NYLON
| PVC
| 2.05
| 0.8
| 0.2
| 31.06
|
15AWG
| 7/0.55
| 3.5
| NYLON
| PVC
| 1.66
| 0.7
| 0.2
| 25.15
|
16AWG
| 7/0.49
| 3.3
| NYLON
| PVC
| 1.32
| 0.7
| 0.2
| 21.22
|
18AWG
| 7/0.38
| 3.0
| NYLON
| PVC
| 0.79
| 0.7
| 0.2
| 14.98
|
THHN Building Wire is general purpose wiring in accordance with the NEC.The building wire is rated at 600 volts for installation in conduit or other recognized raceway cable, cables, THHN cable, THWN
cable, FVN cable, digital cable,Electric wire, Electrical wires, Electric cable, Electrical cable, Electrical cables, PVC
Insulated and Sheathed Cable, PVC insulated cable, insulated cable, instrumentation cable, power cable, stranded cable, double
insulated, flat cable, CCC approved, AL conductor, installation wire, flexible wire, flex cable, single core, multi core cable,
fire resistant, XLPE, XLPE cable, LSZH, LSOH,
LSZH cable.
FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables ,silicone rubber , teflon cable,wire harnessand other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Company Profile
Ningbo Xiayu Import and Export Co., Ltd
We,huzhou hongtong electronic cable Co.,Ltd is a Pioneer manufacturer with more than 20 years experience in the cable industr y in China. We can professionallymanufacture and supply Fire alarm cables,silicone rubber,teflon cable,wire harness, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires, Our products with the brand of "UNIRISINGCABLE" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current production capacity is about 500,000,000 meters per year.Our factory is located in zhejiang huzhou which is a beautiful port city.We have very advanced testing machines,including Agilentand HPanalyzer. We carefully test cables under ISO9001-2000 quality management before shipping to the customers.And our quality is always reliable.Most of our products are expor ted to Europe, America, Russia, and South-east Asia. Etc. What is more, our company always devotes to developing custom cables according to clients needs. We look for ward to working with you and getting mutual benefit in future.
