High Precision Hot Sale, CNC Lathe, Cwe Series /Conventional Lathe Cwe

Product Description

Product Description

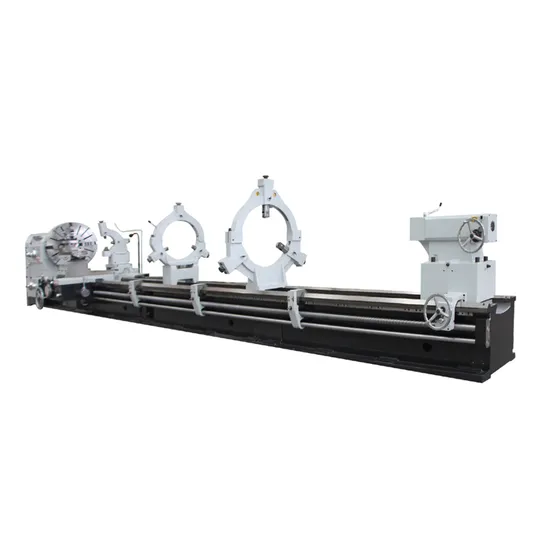

UNIVERSAL ENGINE LATHE INTRODUCTION
This series of heavy-duty general lathe mainly undertakes all kinds of turning work. It can turn the end face, outer circle, inner hole and metric thread, inch thread, module thread, diametral pitch thread of various parts. The upper carriage can be used to cut the short cone separately, and the upper carriage can be used to cut the long cone in combination with the longitudinal feed. In addition, it also has the functions of drilling nesting and boring. The machine tool has high power, high speed and strong rigidity. Hard alloy tools can be used for powerful turning to process various ferrous and non-ferrous metals.
FEATURES
• One-piece bed adopts high strength iron to ensure rigidity and precision
• Ultrasonic frequency quenched guide-ways ensure good wear-resistance
• Headstock gears hardened and ground to achieve precision and low noise
Product Parameters

		SPECIFICATION	UNIT	CW61125E	CW61140E	CW61160E
Capacity		Swing over bed	mm	1300	1500	1700
		Swing over cross slide	mm	900	1100	1300
		Distance between centers	mm	3000-10000	3000-10000	3000-10000
		Guideway width	mm	1100	1100	1100
		Max, bad capacity	T	20	20	20
Spindle		Spindle bore	mm	100	100	100
		Spindle bore taper		Metric φ120/MT6	Metric φ120/MT6	Metric φ120/MT6
		Spindie nose type		1:30	1:30	1:30
		Spindle speed steps		FWD.4steps	FWD,4steps	FWD,4steps
		Spindle speed range	rpm	2-200	2-200	2-200
		Chuck	mm	φ1250 4-jaw manual	φ1250 4-jaw manual	φ1400 4-jaw manual
Turret		Turret/tool post
		Tod shank size	mm	45×45	45×45	45×45
Feed		Xaxis trave	mm	850	850	850
		Z axis trave	mm	1350---9750	1350---9750	1350---9750
		X axis feed grade/range	mm/r	56/0.05-6	56/0.05-6	56/0.05-6
		Zaxis feed grade/range	mmit	56/0.1-12	56/0.1-12	56/0.1-12
		X axis rapid traverse	mm/min	1870	1870	1870
		Z axis rapid traverse	mm/min	3740	3740	3740
		Metric thread grade/range	mm	44/1-120	44/1-120	44/1-120
		nch thvead gradelrange	T.P.	31/28-3/8	31/28-3/8	31/28-3/8
		Module thread grade/range	mm
		DP thread grade/range	D.P
Tailstock		Tailstock quill diameter	mm	φ280	φ280	φ280
		Tailstock quill taper		1:7	1:7	1:7
		Tailstock quill trave	mm	300	300	300
Motor		Main spindle motor	kW	55	55	55
		Rapid traverse motor	kW	1.5	1.5	1.5
		Codlant pump motor	kW	0.37	0.37	0.37
Dimension		Width x Height	mm	2050x1980	2250×2050	2250×2150
		Length	mm	6400--13400	6400--13400	6400--13400
Weight		Net weight	T	22.6--- (1m1050Kg)	23,3--- (1m1050Kg)	24.1--- (1m1050Kg)
Please note: machine bed length can customize according to real work demand

		SPECIFICATION	UNIT	CW61180E	CW61200E
Capacity		Swing over bed	mm	1900	2100
		Swing over cross slide	mm	1500	1700
		Distance between centers	mm	3000-10000	3000-10000
		Guideway width	mm	1100	1100
		Max. load capacity	T	20	20
Spindle		Spindle bore	mm	100	100
		Spindle bore taper		Meticφ120/MT6	Meiric φ120/MT6
		Spindle nose type		1:30	1:30
		Spindle speed steps		FWD.4steps	FWD,4steps
		Spindle speed range	rpm	2-200	2-200
		Chuck	mm	φ1600 4-jaw manua	φ1600 4-jaw manua
Turret		Turret/todl post		Manual turret 4 position	Manual turret 4 position
		Tool shank size	mm	45×45	45×45
Feed		Xaxis travel	mm	850	850
		Z axis trave	mm	1350---9750	1350---9750
		X axis feed grade/range	mmi	56/0.05-6	56/0,05-6
		Zaxis feed grade/range	mm/	56/0.1-12	56/0.1-12
		Xaxis rapid traverse	mm/min	1870	1870
		Z axis rapid traverse	mm/min	3740	3740
		Metric thread grade/range	mm	44/1-120	44/1-120
		Inch thread grade/range	T.P.	31/28-38	31/28-3/8
		Module thread grade/range	mm
		DP thread grade/range	D.P
Tailstock		Tailstock quill diameter	mm	φ280	φ280
		Tailstock quill taper		1:7	1:7
		Tailstock quill trave	mm	300	300
Motor		Main spindle motor	kW	55	37
		Rapid traverse motor	kW	1.5	1.5
		Coolant pump motor	kW	0.37	0.37
Dimension		Width x Height	mm	2300×2250	2300x2250
		Length	mm	6400--13400	6400--13400
Weight		Net weight	T	24.9--- (1m1050Kg)	24.9--- (1m1050Kg)
.Please note: machine bed length can customize according to real work demand

---
