1.0 Ton Chinese Crawler Digging Equipment Mini Excavator with CE

Product Description

Product Description
2.5 Ton Mini Loader Machine Mini Excavator For Sale High Quality Level 2.5Ton Mini Digger Price Free Aftersales Service

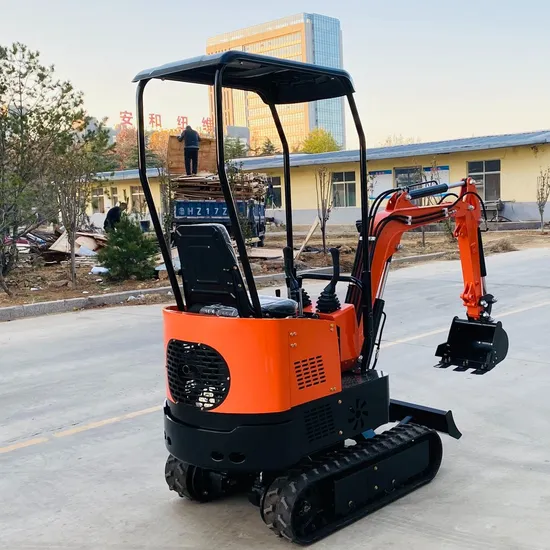

The crawler excavator is a compact excavator.The mini excavator matched Laidong tier III engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with hydraulic broken pipeline system.the machine can changed track from rubber to steel and cabin from open to closed.ensure it can work in different working environments and conditions. Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.

Product Parameters

Emission Standard	China stage III
Make /Model	LAIDONG /3TE30
Power /Rotation speed	22.1kw(30HP)@2300rpm
Number of cylinder	3
TRACK SYSTEM
Maximum Travel speed	2.5km/h
Width of track shoe(Rubber &steel track)	230mm
PERFORMANCE PARAMETER
Standard Bucket capacity	0.1m³
Swing speed	12rpm
Maximum Grade ability	30°
Maximum Bucket digging force	15.3KN
Maximum Arm digging force	10.5KN
Hydraulic system pressure	18Mpa
Machine weight	2350kg
Boom length	1850mm
Arm length	1000mm
MACHINE SIZE
Overall dimension (L*W*H)	4170mm*1300mm*2280mm
Axle base(Track length on ground)	1230mm
Track gauge	1070mm
Minimum Ground clearance	230mm
Swing radius at tail	1180mm
WORKING RANGE
Maximum Digging height	3700mm
Maximum Dumping height	2290mm
Maximum Digging depth	2450mm
Maximum Vertical digging depth	2160mm
Maximum Digging radius	4370mm
Minimum swing radius	2020mm
Maximum Lifting height of blade	240mm
Maximum Cutting depth of blade	310mm
Boom swing angle(Left/Right)	70°/50°

Company Profile

Packaging & Shipping

FAQ
Q:How to guarantee the quality problem?
A:We have a professional quality inspection department, on-site inspection of the production process, layer upon layer of strict control and inspection of products before delivery, absolutely eliminate defective products.
Q:Why choose us?
A:In this industry, we have a better service and quality management system, I believe you will choose professional, and the same quality to provide you with a better price of us.
Q: How long is your delivery time?
A:In the case of stock, it is usually 2-5 days. Others calculate the time according to the quantity of your order.
Q:How do I receive the goods?
A:We have professional transport agents,which can deliver goods to various ports, FOB, CIF, DHL, Federal Express, etc.Please provide detailed address, we can also provide door-to-door service for you.
Q:How do I pay?
A: We accept 30% T/T in advance , balance before shippment. If you have other needs, you can also contact us.

---
