Ab 60 90 Planetary Reducer, Step Gear, Servo Gearbox for March Purchase

Product Description

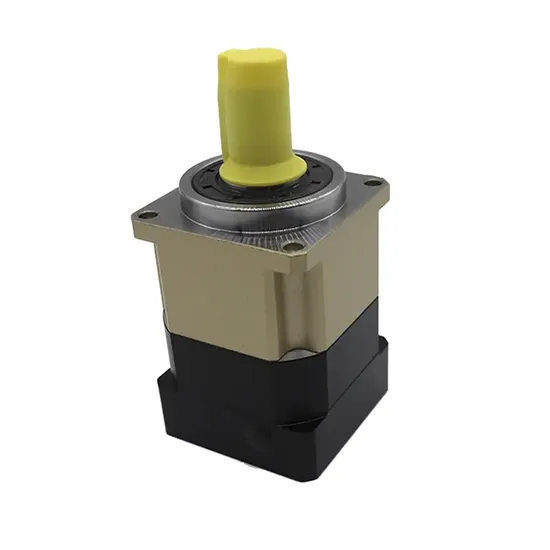

Planetary Gearbox AB Series 42 60 90 115 142 180 220 Square Flange Helical Bevel Planetary Transmission Gearboxes Servo Motor
PLF series, PLE series, ZPLF series, ZPLE series, AB series, ABR series and many other models are available. Product Description
Planetary Gearbox AB Series 42 60 90 115 142 180 220 Square Flange Helical Bevel Planetary Transmission Gearboxes Servo Motor Advantages of the planetary gearbox: Low backlash High Efficiency High Torque High Input Speed High Stability High Reduction Ratio Detailed Photos
Product Parameters

Name	High Precision Planetary Gearbox
Model	AB042, AB060, AB060A, AB090A, AB115, AB142, AB180, AB220
Gearing Arrangement	Planetary
Effeiency withfull load	≥97
Backlash	≤5
Weight	0.5~48kg
Gear Type	Helical Gear
Gear stages	1 stage, 2 stage
Rated Torque	14N.m-2000N.m
Gear Ratio One-stage	3, 4, 5, 6, 7, 8, 9, 10
Gear Ratio Two-stage	15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100
Mounting Position	Horizontal (foot mounted) or Vertical (flange mounted)
Usage	stepper motor, servo motor, AC motor, DC motor, etc

External Mounting Dimensions
1 stage reduction ratio 3~10
2 stage reduction ratio 15~100 Applications
Product Overview:

Precision planetary gear reducer is another name for planetary gear reducer in the industry. Its main transmission structure is planetary gear, sun gear and inner gear ring.
Compared with other gear reducers, precision planetary gear reducers have the characteristics of high rigidity, high precision (single stage can achieve less than 1 point), high transmission efficiency (single stage can achieve 97% - 98%), high torque/volume ratio, lifelong maintenance-free, etc. Most of them are installed on stepper motor and servo motor to reduce speed, improve torque and match inertia.

---
