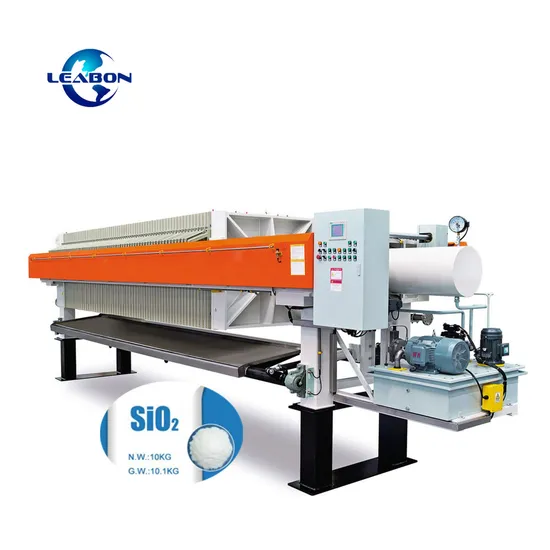

Automatic Sludge Dewatering Filter Press Machine for Solid-Liquid Separation

Product Description

Automatic Sludge Dewatering Filter Press Machine For Solid-liquid Separation Application
The membrane filter press is pressed by the external filter plate to form a closed filter chamber, and the solid-liquid separation is realized by the filter medium (filter cloth, filter paper, etc.) under the action of the feed pump.
Main Parameters:

model	Filter area m2	Plate size mm	Thickness of filter cake mm	Plate number pcs	Cubage of filter chamber L	Filter pressure Mpa	Cylinder rated pressure Mpa	cylinder maximum stroke Mpa	Foundation Dimensions			Dimensions			weight kg
									L1 mm	B mm	C mm	L mm	W mm	H mm
XMJ/ 520-20U	4	520*520	20	9	40	0.5-1	25	350	1280	200	600	1880	830	850	560
	6			14	60				1510			2110			630
	8			19	80				1730			2330			700
	12			29	120				2210			2810			830
	16			39	160				2610			3200			980
	18			44	176				2840			3410			1160
	20			49	200				3060			3650			1360
BMJ/ 520-30U	4	520*520	30	9	60	0.5	25	350	1450	200	600	2050	830	850	590
	6			14	90				1750			2350			660
	8			19	120				2050			2650			760
	12			29	180				2670			3270			930
	16			39	240				3210			3810			1100
XMJ/ 720-25U	20	700*700	25	24	250	0.5-1.6	20	450	2200	460	800	3100	950	1100	2210
	30			37	380				2880			3800			2660
	40			49	500				3500			4400			3080
BMJ/ 700-30U	20	700*700	30	24	300	0.5	20	450	2450	460	800	3350	950	1100	2300
	30			37	450				3230			4070			2800
	40			49	600				3950			4900			3500

Product Usage
The diaphragm filter press is pressed by the external filter plate to form a closed filter chamber, and the solid-liquid separation is realized by the filter medium (filter cloth, filter paper, etc.) under the action of the feed pump. The equipment is widely used in the fields of petroleum, chemical, pharmaceutical, pharmaceutical, food, starch, dye, coal mine and other industries for water treatment and dehydration.
Diaphragm filter press is an intermittent pressurized filter device for solid-liquid separation of various suspensions.
Sewage: electroplating wastewater, steel mill wastewater, electroplating sludge treatment, municipal sludge dewatering, water plant wastewater, dust removal wastewater, printing and dyeing wastewater, papermaking wastewater, biological wastewater, port sludge, red mud, leather wastewater treatment, kaolin, ceramics, clay ;
Medicine: raw material medicine, proprietary Chinese medicine;
Chemistry: basic chemicals, gypsum, soap, pesticides, mercury, sodium chloride, waste acid recovery, catalysts, cesium chloride;
Food: edible oil, palm oil, palm kernel oil, vegetable butter, finished syrup, raw sugar, beet sugar, sucrose, soy sauce, juice pectin;
Minerals: iron ore, manganese chloride, calcium carbide slag, zinc chloride, calcium hypochlorite, electrolytic manganese, waste acid recovery, calcium carbonate, industrial sand, gold mine tailings, salt mud, aluminum phosphide, potassium chloride;
Workshop
Our Service 1. supply the free material testing in laboratory and give out the report for free.
2. supply free model selection according to your capacity and other information.
3. supply manual operation to insturct the operation.
4. supply installation instruction.
5. supply full set of filtration solution . We have top pump , valve , motor agreement supplier , can give you turnkey service.
FAQ: 1. How to buy your interested products?
You can provide us the slurry sources, flow rate and ground area, material requirements about your project (More details, please contact us).
2. How to pay?
L/C or T/T are acceptable.
3. What is the delivery time?
It depends on order quantities. Generally speaking, the delivery time will be within 2 months.
4. How to pack the products?
We use standard export package. If you have special package requirements, we will pack as you required, but the fees will be paid by customers.
5. How to install after the equipment arriving destination?
We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.
6. How long is the validity?
The validity is 12 months after installation.
