PLC-Controlled Monobloc Bridge Saw for Cutting Stone Marble Granite Quartz & Sintered Stone

Product Description

Automatic Monobloc Bridge Saw Cutting Machine for Kitchen Countertop
(Processing stone marble granite quartz & sintered stone)
The Bridge Saw Machine head can rotate 90° from left and right, and can tilt from 0 to 45°. Its worktable can rotate any degree from 0~360° in horizontal direction, and turnover to 85 degrees in vertical direction. This bridge saw machine can do cutting and edge chamfering with merits such as small size, easy transport and simple operation.
Product Description
THE AKQQ-Y2 BRIDGE SAW MACHINE OFFERS EVERYTHING A FABRICATOR NEEDS.
A GOOD QUALITY MACHINE, WITH ALL EXTRAS, 1 YEAR WARRANTY, AT AN EXCELLANT PRICE!!
TILTING & ROTATING HEAD
CAST IRON CONSTRUCTION
OIL COVERED MOVEMENT ON X AND Y AXIS
PLC CONTROLS
LASER ALIGNMENT
85° HYDRAULIC TILTING TABLE
360° AUTOMATIC ROTATING TABLE WITH INFINITE LOCKING POINTS
WIRELESS REMOTE CONTROL
CONCRETE OR WOOD TABLE
ONE PIECE MONO FRAME
TOUCH SCREEN CONTROL PANEL

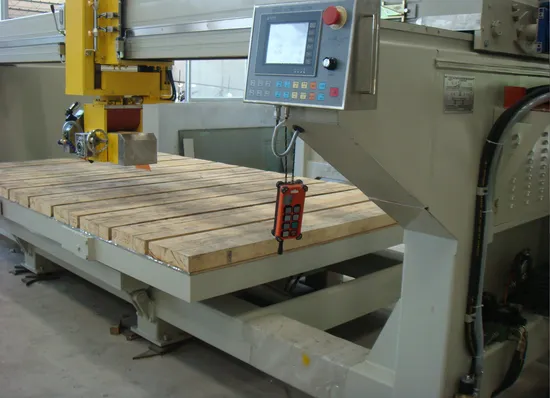

This is not a stripped down manual bridge saw, but a fully computer controlled bridge saw that is made to last, making this Infrared Bridge Saw one the most versatile cutting machines you can put in your shop for the money. The bridge saw is controlled by microcomputer for fully automatic operations, and has a liquid crystal touch screen for easy operator interface. It also comes with a remote control to allow operator to stand next to work piece during setup, and a laser cutting guide. These standard features allow faster setup and easier operator interface.
This machine is constructed from cast iron for the highest quality and best stability of any machine of its size on the market. The main beam has been machined to perfect tolerances to give it extremely straight cuts, while absorbing any minor vibrations during normal use. The saw head has a hydraulic locking unit to insure precise cut alignment, and the gears run in a sealed bath of oil for continuous lubrication. A laser cutting guide on the saw facilitates quick setup and ease of operation.
The standard 360 degree turntable has infinite locking points. The table is available with three different surfaces; wood tabletop surface, concrete surface, or concrete & plastic mixture surface. The third option of the concrete & plastic mixture lasts longer than wood or concrete, helps prevent slabs from cracking, and causes less wear on saw blades.
The machine has a steel mono-frame with hydraulic units inside the frame, for a cleaner installation and safer operation.

Product Parameters

Saw blade diameter	φ350-500mm		Cutting thickness	0-80mm
Turning of Worktable	0-360° (any degree)		Worktable tilting	85°
Rotation of the Cutter Head	90°		MAX processing size	3200*2000mm
Tilting Angle of the Cutter	0-45°		Computer Controlled Operation	Touch screen/ PLC
Head Max Up-Dowm Travel	250mm		Main motor power	11KW/15KW
Machine dimension(L*W*H)	5600x2950x2250mm		Gross weight	5800KG

Brand of major components of electrical appliances:
PLC OMRON Japanese Brand
INVERTER HITACHI Japanese Brand
KM SCHNEIDER German Brand
QF SCHNEIDER German Brand
LIMIT SWITCH OMRON Japanese Brand
LINEAR GUIDE HIWIN Taiwan Brand
Detailed Photos
Packaging & Shipping
This Bridge saw machine can be loaded into a 20'GP Container.

Installation Instructions
1. There are guide videoes showing how to use machine, and English instruction manual sent to you with machine.
If there is still have any question, we will provide free professional online training for you until you can run the machine well.
2. You can come to our factory to learn the installation and operation.
3. We can send enginner to help you install and teach you use the machine.


After Sales Service
Our enginner can solve by photo and video guide. For most common problems, we have professional guideline to show how to replace the parts, and for some countries which our agents cover, they will offer service for you as well.

---
