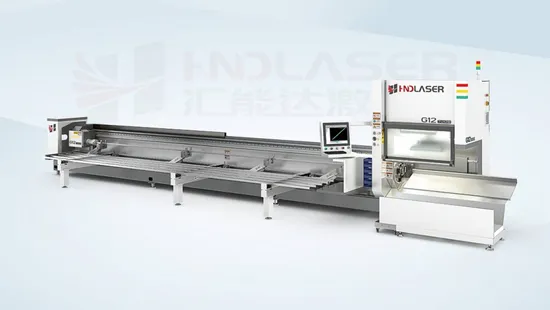

Advanced 3000W CNC Metal Tube Laser Cutter for Precision Cutting

Product Description

Product Description


Product Parameters
Parameters of the whole machine

Category	Attribute	Parameter
Machine Attributes	Equipment series	Small-sized platform: 125 series
	Size(mm)	9600*3300*2300
	Total weight (ton)	4.2T
	Full power consumption of the whole machine (KW)	20~25
	Operating temperature (ºC)	0-40
	Cutting material	Carbon steel, stainless steel, aluminum alloy, copper, brass, etc
	Cutting function	Cutting;Punching holes;Chamfering
Processing range	Processing stroke (mm)	Round tube: ¢12- ¢180 Square tube:12-125 Rectangular tube:max150*100
	Cutting seam width (mm)	0.1-0.2
Acceleration	Maximum acceleration on X/Y axis	1.5G

Technical parameters of components

Component Name	attribute	Parameter values
Laser	Output power	3000W
	Working mode	Continuous optical fiber
	Fiber diameter	50μm
	Cooling method	Water-cooling
	Cutting material	Metals such as carbon steel, stainless steel, aluminum alloy, copper, brass, etc
Machine bed	Structure	Pipe plate welding
	Length	Optional

Key component configuration

Serial number	Component Name	Brand	Model/Origin
Key components
1	Fiber laser	Raycus(optional)	China
2	Cutting head	OSPR/BOCU(optional)	China
3	Motor	INOVANCE/YASKAWA(optional)	China/Japan
4	Laser specific chiller	Hanli/Teyu	famous Chinese brand
5	Electronic control components	Schneider,France	China
6	Pneumatic components	AIRTAC, Taiwan	China
Processing components
7	Main bed	HND Laser	China
8	Chuck	HND Laser	China
9	Loading and unloading system	HND Laser	China
Special CNC cutting system
10	Operating system	Shanghai Bochu	Bus System/China
11	Nesting software	Shanghai Bochu	3D pipe cutting specialized software/China
Other
12	Packaging and transportation	Standard packaging	Standard configuration

Our customers
Certifications
Laser Cutting Machine SGS Certificated
(Can be customized to your needs)
Experience unparalleled confidence with our laser cutting machine, proudly certified by SGS. This prestigious certification assures that our equipment not only excels in mechanical performance but also adheres strictly to international safety and stability standards. For business owners, managers, and operators, this represents a critical promise of reliability and safety, ensuring seamless operation and peace of mind during every use.
Packaging & Shipping
Our laser tube cutting machines have been sold to over 50 countries worldwide, ensuring that your goods will be delivered safely and smoothly to your factory.


Company Profile
Company Information
ZHANGJAGANG HNDLASER TECHNOLOGY CO.,LTD HNDLaser Technology Co., Ltd. is a prestigious national high-tech enterprise backed by HNDLaser in Zhangjiagang. We specialize in the research, development, production, and application of cutting-edge laser equipment. Our portfolio includes Zhangjiagang HND Intelligent Equipment Co. and other esteemed enterprises.
With consistent and significant annual R&D investments, our products have gained wide market recognition, ensuring a stable production output across the entire laser industrial chain. HNDLaser is firmly rooted in the philosophy of being people-oriented and driven by scientific and technological innovation. Maintaining a focus on innovation and talent cultivation is our cornerstone for increasing market share and product recognition continually.

After Sales Service
A. Pre-Sales Service
1. Technical Consultation: We will provide you with any professional technical and pricing consultation within two hours based on your needs. We can also send relevant samples and product information, and respond quickly to any questions you may have, such as processing table size, precision, cutting thickness, and operating costs related to cutting parameters.
2. Site Visits: We welcome you to visit our company for inspections at any time and from anywhere.
B. After-Sales Service
1. We have established a comprehensive after-sales service system to track customer feedback 24/7.
2. From the date of purchase, you can attend various technical training sessions at our company free of charge.
3. After purchasing the machine, we can send technicians to your country for installation and operation training.
4. You can provide your suggestions or inquiries through various channels, including phone, fax, mail, email, or website customer messages.
FAQ
Q1: What about the warranty period?
A1: Rest assured, if you encounter any issues with the main components of the machine (excluding consumables) during the warranty period, we'll swiftly replace or repair them at no extra cost.
Q2: I'm unsure which model best suits my needs. Can you help me decide?
A2: Certainly! Please provide the following information:
(1) The type of material you're working with.
(2) The thickness,diameter,length and shape of your material.
(3) The cutting requirements you need.
Q3: What are your payment terms?
A3: We offer flexible payment options such as TT, Western Union, PayPal, LC, and Cash, among others.
Q4: Do you provide CE certification and other necessary clearance documents?
A4: Absolutely, we have all the essential original documents. Post-shipment, we'll supply you with the CE document, packing list, commercial invoice, and sales contract to facilitate customs clearance.
Q5: What should I do if I'm unfamiliar with the machine operation or encounter issues after receiving it?
A5: Don't worry, we provide a comprehensive user manual with detailed images and a USB disk to guide you step-by-step. Plus, we offer monthly updates to keep you informed on any advancements.
Q6: How can I obtain a sample to verify the quality and results?
A6: Simply send us your sample, and we'll conduct a free test for you.
Q7: When can I expect to receive a quotation?
A7: Your inquiry will be addressed with expertise and precision within 12 hours.

---
