Bed Type Universal Swivel Head Milling Machine

Product Description

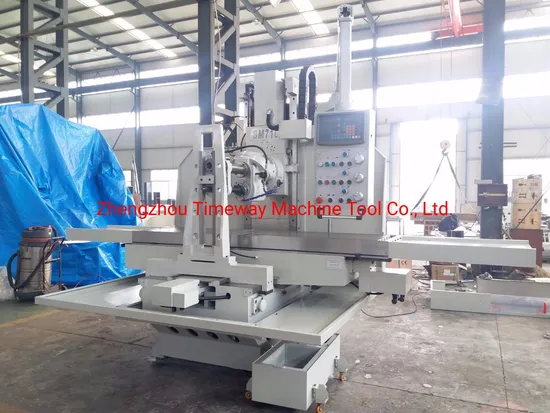

Bed Type Universal Milling Machine BM716
Features:
* The universal milling head can be adjusted to any angle in the range of 360 ° including horizontal.
* The sturdy cast iron construction with a weight of 12,000 kg allows a maximum table load capacity of up to 3,000kg.
* Servo drives on all axes, the automatic feed rates are infinitely variable in the X- and Y-axis.
* Simultaneous movement of several axes.
* Rapid traverse in all axes.
* Automatic central lubrication.
* Hanging panel for optimum operating comfort.
* Powerful hydraulic clamping in X-, Y-and Z-axis.
* Good accessibility to the machine table and the cutter head facilitate the loading and unloading as well as work on the milling head.
* A wide array of uses are possible with this machine through optional special accessories (eg. dividing head, rotary table, tailstock).
Standard configuration:
Collet chuck ISO 50 with collets 4, 6, 8, 12, 16, 18, 22, 26 mm
Reducing sleeve ISO50 / MK4
Coolant system
Foundation bolts M24 x 500
Operating tools
Manual

Specification	Unit	BM716
Table size	mm	2500 × 575
Table travel (X,Y,Z)	mm	1800 (2000) × 600 × 900
Min. distance from hor. spindle axis to worktable surface	mm	30
Min. distance from vertical spindle nose to worktable surface	mm	49
Distance from vertical spindle axis to column guideway	mm	110
Spindle speed range	rpm	40-1200
Number / Width / Distance of T-slot	mm	3-22-152
Spindle taper	-	ISO 50
Longitudinal, transverse feed speed range	mm/min	20-2200
Rapid feed speed (X,Y)	mm/min	3000
Feed speed range	mm/min	12-1320
Rapid feed speed (Z)	mm/min	1800
Spindle motor power	kw	11
Max. load of worktable	kg	3000
Overall dimension (L×W×H)	mm	4300 × 3200 × 3300
Machine weight	kg	10000

One-stop Shopping
Please click on the picture to view the product category you are interested in

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
