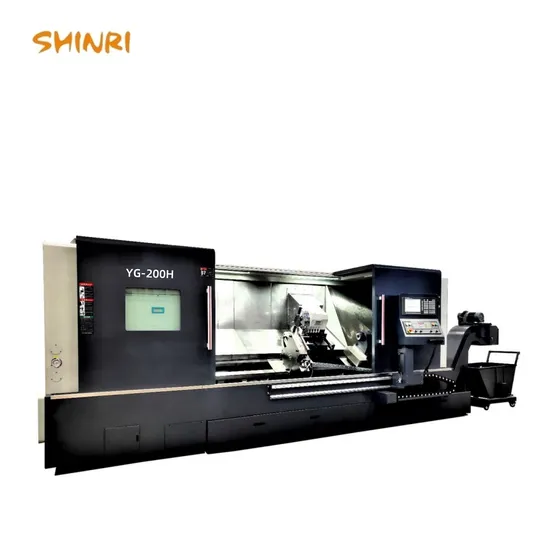

Yg-200h Heavy Cutting High Precision Ht300 Cast Iron Slant Bed CNC Lathe Machine

Product Description

Product Description
1. Bed process structure: integrated bed structure
The main unit structure is optimized through structural analysis, and the dynamic rigidity of the bed can be maintained even in heavy cutting by reducing the height of the equipment. High-strength HT300 cast iron one-piece strong structure bed. Medium-frequency hardened rectangular guide rails (52 54°), one-time clamping precision grinding, special wear-resistant sheets attached to the slide plate, precision matching through manual scraping, bearing seats and motor seats are all scraped and inlaid. In addition, the YH 750H series adopts a 30-degree inclined bed, which greatly improves its processing stability and precision retention. Independent integrated cutting fluid tank The coolant tank is installed in front of the bed to prevent leakage and maintain stable processing by using high-power coolant.The main unit structure is optimized through structural analysis, and the dynamic rigidity of the bed can be maintained even in heavy cutting by reducing the height of the equipment. High-strength HT300 cast iron one-piece strong structure bed. Medium-frequency hardened rectangular guide rails (52 54°), one-time clamping precision grinding, special wear-resistant sheets attached to the slide plate, precision matching through manual scraping, bearing seats and motor seats are all scraped and inlaid. In addition, the YH 750H series adopts a 30-degree inclined bed, which greatly improves its processing stability and precision retention. Independent integrated cutting fluid tank The coolant tank is installed in front of the bed to prevent leakage and maintain stable processing by using high-power coolant.The main unit structure is optimized through structural analysis, and the dynamic rigidity of the bed can be maintained even in heavy cutting by reducing the height of the equipment. High-strength HT300 cast iron one-piece strong structure bed. Medium-frequency hardened rectangular guide rails (52-54°), one-time clamping precision grinding, special wear-resistant sheets for the slide plate, manual scraping precision matching, bearing seats and motor seats are all scraped and inlaid.
In addition, the YG750H series adopts a 30-degree inclined bed, which greatly improves its processing stability and precision retention.
Independent integrated cutting fluid tank The coolant tank is installed in front of the bed to prevent leakage and maintain stable processing by using high-power coolant.
2. Guide rail: box type guide rail
All axes of the YG series are designed with box-type guide rails, which have better mobility. Box-type guide rails have a strong ability to offset the vibration caused by cutting, reduce tool wear and improve processing stability. Sealed built-in structure The design of the X-axis of the YH series adopts a sealed built-in structure to minimize the damage of the turret by chips.
3. Spindle: Heavy Cutting High Precision
The spindle design for heavy cutting adopts a structural design that is often used in large machine tools. The combination of double cylindrical roller bearings and angular contact ball bearings brings excellent heavy cutting processing capabilities. In addition, the use of multi-channel belts improves machining performance and reduces noise and belt slippage. The spindle design adopts a labyrinth structure to reduce the damage that coolant may cause to the bearing and improve processing stability. (2500 r/min) It can provide users with high-speed precision cutting and is suitable for mass production of products with complex shapes, high rigidity requirements, high precision requirements, and high finish.
4. Tailstock: Heavy-duty, high-rigidity structure
1. MT5 movable center, sleeve hydraulically extended, the carriage drags the tailstock and manually locks it.
2. MT5 fixed center, built-in rotation, sleeve hydraulically extended, the carriage program controls the tailstock and automatically locks it hydraulically.
5. Turret: Servo turret
The high-rigidity overall design is matched with a high-precision three-piece radial clutch to ensure high positioning accuracy and repeatable positioning accuracy. The servo motor drives the cutter head to rotate, and the tool can be selected in both directions or at any nearby location. The oil pressure principle is used to loosen and clamp the clutch, and the proximity switch is used to feedback the clutch action signal to quickly and accurately achieve the tool change action.
6. Manual scraping assembly
The saddle, carriage, spindle joint tailstock, screw seat and motor seat are all assembled by manual scraping process.
7. Chuck cylinder
The machine uses Taiwan (Korea) high-speed rotary chuck oil cylinder and optional automatic chip removal device, which can greatly reduce the operator's labor intensity and achieve safe and efficient production. The above functional components can be programmed and controlled, and various special fixtures can be designed and installed according to the user's special requirements.

Product Parameters

Item	Specification	Unit	YG-200H	YG-500H	YG-750H
Machining capacity	Max. swing over bed	mm	Φ460	Φ630	Φ730
	Max. machining diameter	mm	Φ400	Φ500	Φ630
	Max. machining diameter on slide	mm	Φ260	Φ370	Φ450
	Max. machining length	mm	400	560	740/1020/1640/2240
Travel& Feed	Max. travel X axis	mm	245	270	325
	Max. travel Z axis	mm	420	610	760/1100/1700/2300
	X-axis motor torque	Nm	15	20	30
	Z-axis motor torque	Nm	15	20	30
	X/Z axis connection mode	/	Direct connection
	X/Z axis screw	/	3210/3210	3210/4010	4008/5010
Spindle& Chuck	Spindle nose	/	A2-8	A2-6	A2-8/A2-11
	Max. spindle speed	rpm	3500	3000	2800
	Spindle motor power	Kw	11/15	18.5	22
	Chuck size	/	10"	8"	10"/12"
	Spindle hole diameter	mm	Φ61	Φ82	Φ87
	Spindle bar through hole diameter	mm	Φ52	Φ75	Φ75
Accuracy	Processing accuracy	/	IT6	IT6	IT6
	Repeat positioning accuracy	mm	0.003	0.003	0.003
Turret	Turret type	/	Servo turret
	Tool stations	Tools	10	12	12
	Center height	mm	80	100	125
	OD shank size	mm	25×25	25×25	32×32
	Max. diameter of boring bar	mm	Φ40	Φ40	Φ50
Tailstock	Sleeve diameter	mm	80	100	100
	Sleeve travel	mm	80	80	80
	Max. travel of tailstock	mm	400	500	600/800/1300/1800
	Tailstock sleeve taper hole	/	Mohs 4#	Mohs 5#	Mohs 5#
Overall dimension	L×W×H	mm	2200×1500×1700	3000×1800×1900	4200×1900×1850
Bed type	Slope	/	45°	30°	30°
Machine weight	Net weight	T	3.5	5.5	7.5 /8.5/10.5/12.5T
