Premium Power Switch Socket for 200 Ton Injection Molding Machines

Product Description

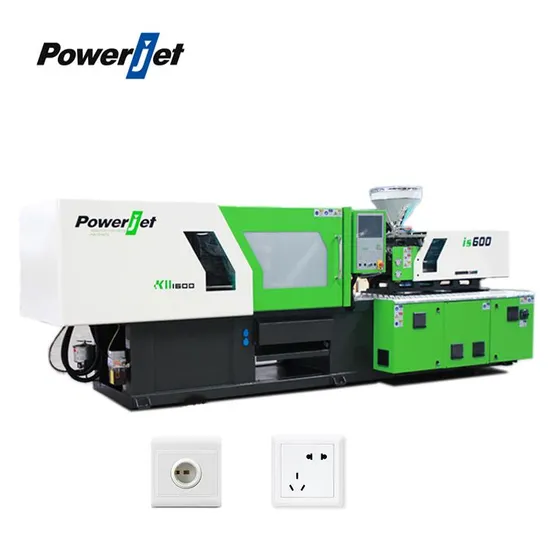

HIGH PRECISION INJECTION MOLDING MACHINE
Powerjet New Series Hydraulic Injection Molding Machine With Faster Injection And Plasticizing Speed, More Stable And Higher Efficiency.
Faster injection speed & charging speed, better stability, higher Efficiency
Clamping Force: 900~10000(KN)
Driving System: Hydraulic
Motor Type: Servo
Applications: Food And Beverage Packaging, Necessities Products, Home Appliances, Electrical Components, Automotive Parts, etc.
Machine Details

CLAMPING UNIT -Improve stability in molding
-Minimize platen's damage
-Higher speed and stable platen's movement
Center- Press Toggle Unit
1: Center press toggle system designed to apply equal force on mold during clamping and preventing platen's damage 2: New design of the clamping structure, ensures the rigid mold platen enhancement increasing more than 20%.
3: Anti-tilt side design of the foot ensures the opening and closing of smooth high-speed;
4: European ejector design, enhances the adaptability of the mold;
5: Low stress and long life bar structure.
INJECTION UNIT
---Precision, Stability, Good Plasticization--- Improved injection mechanism,

Efficient driving technology,
Fully reduce injection resistance,
Improve speed and accuracy,
Ensure plasticizing quality,
Color mixing performance.
PLC
. More reasonable electric circuit layout, improving anti-interference ability and stability; . More powerful software, highscalability; Optimized control system, energy saving and high response

DESCRIPTION		UNIT	KII200-V7/S7
Clamping Unit	Clamping force	kN	2000
	Opening stroke	mm	490
	Max daylight	mm	1040
	Platen size	mm	793x793
	Space between bars	mm	530x530
	Max mold height	mm	550
	Min mold height	mm	180
	Ejector stroke	mm	150
	Ejector force	kN	65
	Ejector number	pcs	1+4
Injection Unit	Screw diameter	mm	46	52	60
	Scew L/D ratio	L/D	23	20	17.5
	Injection pressure	MPa	230	180	135
	Shot volume	cm3	407	520	693
	Shot weight (PS)	g	363	463	617
	Iniecton rate	g/s	12.8	16.3	21.8
	Plasticizing capacity	g/s	175	224	298
	Screw stroke	mm	245
	Screw speed	rpm	253
	Carriage stroke	mm	340
Power Unit	Hydraulic system pressure	MPa	17.5
	Pump motor power	KW	22/30.8
	Heater power	KW	10.91
	Number of temp control zones	PCS	1+4
General	Oil tank capacily	L	300
	Machine weight	T	6.4
	Machine dimensions	m	5.3x1.6x1.8

Company Profile

We have established the global marketing network. To deliver the value of Powerjet injection molding machine and extrusion blow molding machine to over 100 countries area. Multiple senior managers and business elites worldwide. Become the trustworthy partners. Provide the most thoughtful service and fastest user support for you constantly. sincerity for you.
Satisfied Customers

FAQ

Q1: Are you a manufacturer or trading company? A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine. Q2: Delivery time A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly). Q3: Where is your factory located? A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.

---
