US$5,000.00-15,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Powder, Granules, Powder
Mixer Type
Double Ribbon Mixer
Operating type
Continuous Operating
Mixing Drum Shape
U Type Hopper
Transport Package
Wooden Case
Production Capacity
60PCS/Month
Product Description

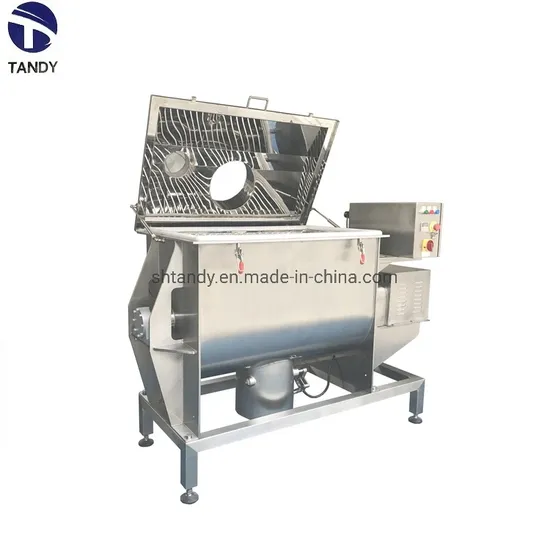

Industrial Dry Powder Spiral Mixer/Ribbon Blender/Screw Agitator Machine
Parameter for reference:
Model no.
| Effective Volume(L)
| Loading coefficient
| Power(KW)
| Rotate speed(R/min)
| Dimension(mm)
| Weight(kg)
|
TDL-200
| 200
| 0.6-0.8
| 4
| 53
| 2020X630X1360
| 360
|
TDL-300
| 300
| 0.6-0.8
| 5.5
| 53
| 2300X700X1490
| 530
|
TDL-500
| 500
| 0.6-0.8
| 7.5
| 45
| 2600X840X1680
| 780
|
TDL-1000
| 1000
| 0.6-0.8
| 11
| 45
| 2930X990X1790
| 1160
|
TDL-1500
| 1500
| 0.6-0.8
| 15
| 39
| 3280X1070X1950
| 1830
|
TDL-2000
| 2000
| 0.6-0.8
| 18.5
| 39
| 3520X1280X2080
| 2150
|
TDL-3000
| 3000
| 0.6-0.8
| 30.0
| 31
| 3820X1560X2330
| 3360
|
Pls feel free to contact us if you need more technical parameters!
|
FAQ:
1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Europe, American, Australia, Asia, Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year
Product Description:
The Horizontal Ribbon Mixer is consisted of U-Shape tank, spiral and drive parts. Outer spiral make the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing. TDL series Ribbon Mixer can mix many kinds material especially for the powder and granular which with stick or cohesion character, or add a little liquid a paste material into powder and granular material. The cover of the tank can be made as open in order to clean and change parts easily.
Main Features :
1. This mixer is wide application for mixing material, for the paste mixing even; keep granule mixing intact.
2. Material proportion different1:1000~5000 perfectly mixing.
3. The discon-nexion ribbon of the mixer can make the material mixed with more high speed and uniformity in short time.
4. This mixer also can be designed with the function to keep cold or heat. Add one layer outside the tank and put into medium into the interlayer to get the mixing material cold or heat. Usually use water for cool and hot steam or use electrical for heat.
