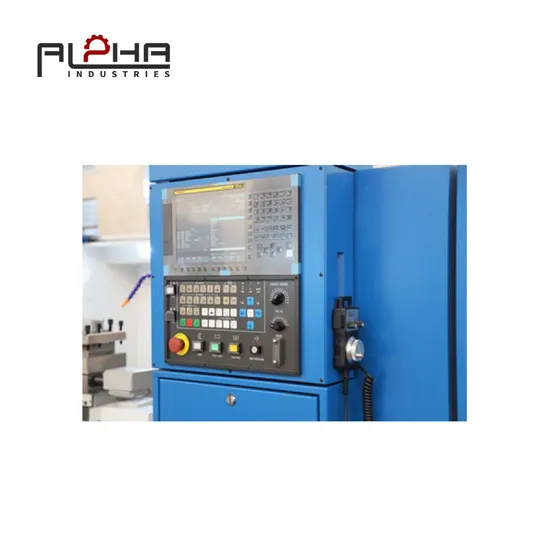

CNC Machine Tool Lathe Metal Conventional for Ck6156e/Ck6166e Gear Head Lathe

Product Description

Product Description
Fabricado En China Metal Conventional CK6156E/CK6166E CNC Machine Tool lathe Product Parameters

Basic Info.
Model NO.	CK6156E/CK6166E		Guide Rail	/
Tool Holder	/		Power Source	Electric
Controlling Mode	CNC		Automatic Grade	Automatic
Setting Mode	/		Precision	High Precision
Certification	CE,ISO9001		Condition	New
Trademark	Alpha industries		Origin	China
Production Capacity	100 Sets/Year

Model		CK6156E	CK6166E
Machining	Max.cutting dia.for diso parts	φ560mm	Φ660mm
	Max.cuttng dia.for axle parts	φ330mm	φ430mm
	Width of bed	405mm	405mm
	Max.workpiece length	750/1000/1500/2000/3000mm (2000mm and 3000mm with different machine outlook)	750/1000/1500/2000/3000mm (2000mm and 3000mm with different machine outlook)
	Max.turning length	600/850/1350/1850/2850mm	600/850/1350/1850/2850mm
	6-way turret Max.turning ength	450/700/1200/1600/2600mm	450/700/1200/1600/2600mm
	6-way turret Max.turning diameter	D420mm	φ520mm
Principal axis	Spindlenose	A2-8	D8
	Spindle bore	φ80mm	φ105mm
	Taper ofspindle hole	MT.No.7	Metric O1131:20
	Stepsofspindle speed	4 ranges (steplessin each)	4 ranges(stepless in each)
	Range of spindle speed	27~135,55~270,160~805,325~1630rpm	27~135,55~270,160~805,325~1630rpm
Feed	Rapidfeedfor Axis Z	10m/min	10m/min
	Rapid feedfor Axis X	8m/min	8m/min
Travel	max. travel ofAxis Z	720/970/1470/1970/2970mm	720/970/1470/1970/2970mm
	max. travel of Axis X	320mm	365mm
Tool post	Tool post stations	4-Stations or 6-Stations	4-Stations or 6-Stations
	Tool cross section	32×32mm	32×32mm
Tailstock	Extemaldiameter	φ75mm	φ75mm
	Taperof tailstock sleeve	MT.No.5	MT.No.5
	max. travel oftailstock sleeve	150mm	150mm
Other	Min.input	0.001mm	0.001mm
	Power of main motor	7.5KW	11KW
	Power of cooling pump	120W	120W
	Overall dimensions (LxWxH)	2250/2500/3000/3500/4500x1200x1520mm	2250/2500/3000/3500/4500×1250×1580mm
	Net weight	2700/3000/3600/4100/4700KG	2800/3100/3700/4300/5300KG
Optional	CNCsystem	*	*
	Tool post	*	*
	Chuck	*	*
	Spindle	o	o
	Tailstock	*	*
	Steady rest	*	*

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
