US$12,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Overall Width
1100-1300mm
Max. Digging Height
3400mm
Max Dumping Height
2400mm
Production Capacity
100per/Month
Product Description

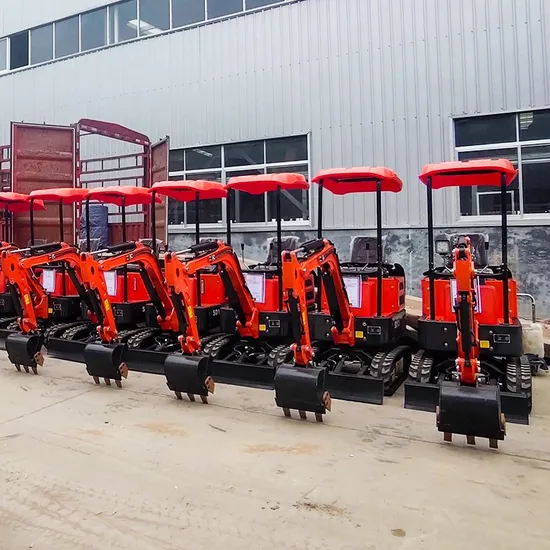

Promotion Quick Order!!! Household New 1. 8 Ton 2 Ton Mini Bagger Excavadora Excavators Price For Sale
We are looking for strong partners all over the world. If you are, then you can contact me to start our era of wealth.
| Machine parameters | Dimensions |
| Model | SD20U | Overall Length | 3400mm |
| Operating Weight | 2 ton | Overall Width | 1100-1300mm |
| Bucket Capacity | 0.06m³ | Overall Height | 2200mm |
| Rated Power | 10kw ,11.2kw,14.7 kw | Arm Length | 950mm |
| Max.Hydraulic System Pressure | 18mpa | Boom Length | 1700mm |
| Max. Grade ability | 30° | Track Length | 1550mm |
| Max Walking Speed | 2.8-4.1km/h | Track Width | 230mm |
| Max Digging Force | 16kn | Platform Width | 970mm |
| Platform Rotary Speed | 14 r/min | Platform Ground Clearance | 480mm |
| Boom swing function | yes | Bucket Width | 450mm |
| Crawler stretch function | optional | Machine configure |
| Working range | Engine Model | Yanmar |
| Max. Digging Height | 3400mm | Main valve | Beifang / Husco |
| Max Digging Depth | 2050mm | Main Pump | Futai (3 pumps system , gear pump ) |
| Max. Digging Radius | 3600mm | Taifeng (Plunger pump) |
| Max Dumping Height | 2400mm | Rotation Motor | Eaton |
| Radius of Tail Gyration | 670mm | Walking Motor | Eaton |
| Max. Sinking Depth of Bulldozer | 195mm | The above pictures are for reference only. If there is any change, no further notice will be given. |
| Max. Lifting Depth of Bulldozer | 200mm |
Options:
1.In addition to the standard bucket, we also provide more auxiliary tools for you to choose from, including Hydraulic Breaker, Toothless Bucket from 50cm to 120cm, Auger. . . . . .
2.Color and style can be customize
Factory introduction:
Our company has more than just a rigorous working attitude! A more pleasant working environment. While the employees of shanding Machinery Company continue to serve customers, they are also very happy to have parties and dinners. Our team, like our factory, is very large and advocates the combination of work and rest.
FAQ
1.Can the factory support mass production? Can I purchase a customized sample first?
A:Dear friends,shanding company can support mass production. It can mass produce 200+mini excavator in one month, and can support customization (one piece is fine), but it cannot provide free prototypes. Please forgive me, my friend!
2.Can it be transported to my door? I want to get my favorite mini excavator soon?
A:Of course, my friend, but if your family is located very close to the port, we suggest that you can go directly to the port to transport your goods, so you can save a lot of money! If the distance is long, you can find an inland transportation company by yourself, and we can communicate with him; we can also find an agency for you, but the toll will be very high (not recommended)
During transportation, we will not charge any intermediate fees and additional service fees other than freight. We just want you to get your favorite mini excavator earlier.
3.How can I guarantee after-sales after I buy it?
A:Dear friends, our machine has a one-year/1000H work warranty period. During this time, if there is any problem with the machine itself, we will repair it for you free of charge, but if it is man-made damage, we will Not responsible for the maintenance of the machine, please forgive
