Product Description
Product Description

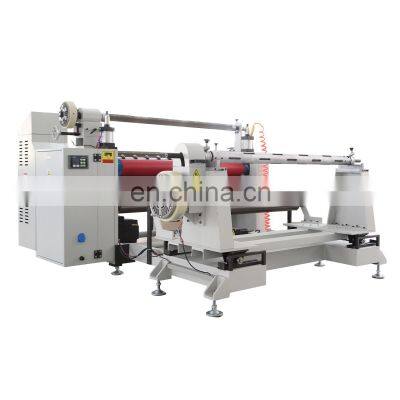

Product DescriptionSpecificationitemvalueApplicable IndustriesManufacturing PlantShowroom LocationNoneConditionNewTypeSlitting RewinderComputerizedYesPlace of OriginChinaJiangsuBrand NameDPVoltage380vDimension(L*W*H)2400mm*2000mm*1300mmWeight1200kgWarranty1 YearProduction Capacity120 m/minKey Selling PointsEasy to OperateMax. workable width1600mmMachinery Test ReportProvidedVideo outgoing-inspectionProvidedMarketing TypeOrdinary ProductWarranty of core components1 YearCore ComponentsPressure vessel, Motor, Bearing, Gear, Pump, EnginePLC BrandMITSUBISHIslitting speed120m/mMachine Speed :1-150m/minMax material width1600mmFeeding Diameter1000mmRewinding diameter500mmSlitting accuracy :±0.1mmVoltage:380V 3 PhaseRaw material Max hole diameter3 inch or 6 inchFinished products Min. Width25mmcompress air source required0.6MPA(customer prepare)Model1300 slitting machine1600 slitting machineMax Feeding Width ( mm )13001600Main Engineer Power ( KW )66Speed (T/M )120120Size ( mm )2400*2000*13002400*2300*1300Weight (kg)12001500 Rewinding diameter ( mm )800800Winding diameter ( mm )450--500450---800precision ( mm )±0.10±0.10Power380V 50HZ380V 50HZ Machine Name :DP-1600 Slitting Machine(Two Motor) 1. Technique Data Machine Speed : 110m/minMax material diameter : 1600mmFeeding Diameter : 800 mmRewinding diameter : 800mmSlitting accuracy :±0.1mmVoltage:380V 50HZMain Motor Power :5.5kw (2 motor power) Total Power: 8kw Raw material Max hole diameter: 3”compress air source:(0.4-0.6)Mpa(customer-owned)Finished products Min. Width by standard slitting :25MMMain Machine size :2400*2300*1300mmFeeding Machine size : 1950*880*780mmWeight : 2.2T2, Feeding DeviceFeeding Air Expansion Shaft (3”Pad Shaft) 2 Setsmagnetic powder brake 100N 1 Set Film release Magnetic Powder Brake 50N 1 SetFeeding Tension Control System 2 SetsCorrection System(Taiwan Gas and Liquid correction) 1 set 3, Renewal Material Laminating Part :Upper Laminating COTS Dia.135(PU) 1 SetUnder Laminating COTS Dia.135(PU) 1 SetAluminum guide roller(hard Oxygen surface treatment) 1 SetPressure roller pneumatic type top and bottom system adjustable : 1 Setelectronic counter 1 SetFilm Release tensioning adjustable system 4. Reeling endReceiving Flatulence axis(3″Pad shaft) 2 Setsmagnetic powder clutch 50N 2 Setshe receiving tension control system 2 SetsMain electrical machine (double motor) 1 SetMain Power inverter 1 SetWinding shaft and pneumatic up and down device(Rise,descend ,support) 1 Set5. Operator control box 1 Set6.Electric control panel 1 Set7. Function Profilefrequency control of motor speed, operation more easy. Control more accurate. Double receiving roller center take up , rewindingDouble receiving magnetic powder tension independent control, can rewinding at the same time , and also can individual useElectronic meter counter with the function of automaticly count the meter and setting length, automatic stopping ,accuracy 0.01,error ±0.15MIndependent fan waste discharge. Double motor configuration,The scroll of rewinding can be positive and negative transfer . 8. Slitting partSlitting up and down cutter 10 sets Circle tool apron 10 setsSlitting up and down cutter gasket:1/2/5/20/30/50 each 13 pieces,10MM 12pcsCompany ProfileKunshan Dapeng Precision Machinery is professional manufacture of high precision Die Cutting Machine and high precision hydraulic die cutting machine , Slitting machine,laminating machine ,Roll to Sheet Cutting Machine, Hot and cold type sheeting machine and other machinery. Our machines are mainly used for the production of industrial tapes, electronic shielding films, protective films of PVC/PET, copper aluminum foils, foams and other relate materials. Our company has excellent production equipment and strong technical force. We constantly improve our management system and after-sales services. Our company has won a good reputation among customers.Our company adopts foreign advanced technology. Through several times of manufacturing reform and innovation, we have developed consistently. We can customize difficult models. We not only provide users with products, but also provide services and professional technology for our customers.In the fierce market competition, we always adhere to the tenet of "quality first, users first" for the purpose to provide more perfect products and more superior services. We hope to cooperate with you to create a win-win situation.
>>
