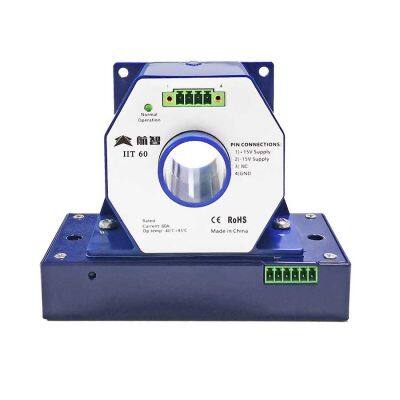

IIT60-10V High-Precision Current Transducer

Product Details

Product Description

Product Description
IIT60-10V has a high gain and measurement accuracy in the full bandwidth range, due to the application of the multi-point zero-flux technology system and high-frequency ripple sensing channel on top of currently existing DC sensor technology.
Primary Nominal Current: DC60A, AC42.4A.
Overload Capacity: DC72A for 1 minute.
Power Supply: DC14.2V to 15.8V.
Ratio: 0.1667 V/A.
Output Impedence: 10mΩ.
Accuracy: 0.02%.
Linearity: 50ppm.
Current Change Rate: 1V/us.
Frequency bandwidth(-3dB): up to 100KHz.
Insulation Voltage (Between primary and secondary): 5KV.
Operation Temperature Range: -40 ~ 85℃.

---
