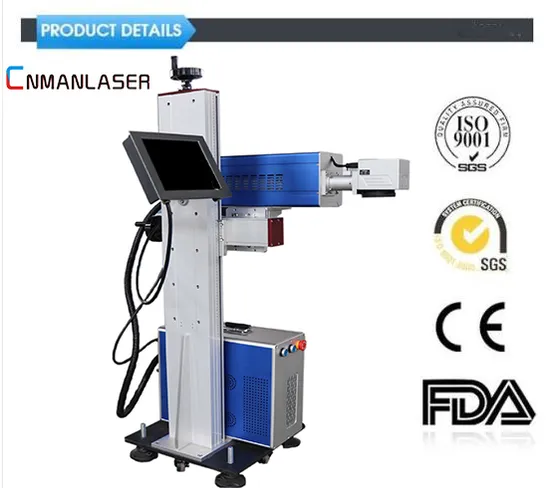

Online Fiber Fly Laser Marker for Bag Date and Serial Number Marking Printin

Product Description

Online fiber fly laser marker for Bag Date and Serial Number Marking Printin
(Model:Man-50)
Features:
Fly Fiber laser marking machine with conveyor, can do marking on same materials very efficiently.
Application Materials:
Fly fiber laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel,
Brass, Aluminum, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon,
PES, PVC, Makrolon.
Fly Fiber Laser Marking Machine Advantages:
1) Long lifespan fiber laser source: 100 000hours
2) High speed scan head, marking speed can achieve 12000mm/s, it is very suitable for marking workpieces in motion.
3) High quality UMC4 controller, which is made by Eastern Logic in Taiwan and supports offline working.
4) Low consumption: <400W, more economized and environmental.
5) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT, etc..
6) High Precision: Up to 0.0012mm, bring you the fantastic and satisfied marking effect.
7) Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.
8) No Consumables: One Fiber marker can work for more than 10 years without any consumables.
9) The conveyor will be customized based on different workpieces.
10) The fiber laser beams no need to adjust the laser optical path.
11) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser.
12) Deeper Marking: Max. 1.2mm stainless steel, suitable for the industries which need high precision and depth marking effect.

Technical Parameters
Type	MAN-50
Laser Wavelength	1064nm
Marking Area	100*100mm
Optional Marking Area	50mm*50mm / 150mm*150mm / 200mm*200mm / 300mm*300mm
Marking Depth	≤0.5mm
Marking Speed	800 standard characters/second
Minimum Line Width	0.012mm
Minimum Character	0.15mm
Repeated Precision	±0.003mm
Life-span of Fiber Laser Module	100 000hours
Beam Quality	M2 <1.5
Focus Spot Diameter	<0.01mm
Output Power of Laser	10%~100% continuously to be adjusted
System Operation Environment	W8--32/64bits / W7--32/64bits / Windows XP
Cooling Mode	Air cooling--Built-in
Temperature of Operation Environment	15ºC~35ºC
Power Input	220V / 50HZ / single phase or 110V / 60HZ / single phase
Power Requirement	<400W
Communication Interface	USB

It is used in the field of excipients clothing, machinr, packaging, building cerramics, beverage packging, tobacco packaging, fabic cutting, rubber items, nameplate casing, handicrafts&gifts, electronic components, lether and other industries.

1) Free Training by VCD:We will supply the machine with <Training VCD> , <User's Manual> and <Instruction Book> in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting.(Recommend)
2) Free Training Factory:You can send operator to laser marker factory for free training. Laser marker will offer professional guide for free.It is direct and effective face-to-face training.Here we have well-assembled equipments, all sorts of tools and testing facility.
Training Time:2-3 days (Recommend)
3) Our engineer can do a door-to-door instruction training service at your local site.We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch.It's better to arrange a translator for both of our engineers during the training period.
Quality Guarantee and After-sales Services:
1)The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.Except the damage artificially and laser krypton lamp, we are responsible for offering the fittings free of charge during the guarantee period.While user is kindly requested to send the damaged fittings to us by courier with your charge before we send back the alternative fitting parts.After the guarantee of quality period, the parts required repairing or change, if any, shall be reasonable charged.
2)We will give technical guide by email, fax and telephone when user meets some problems on installation, operation, adjusting, maintaining.
3)We offer technical supporting to ensure safety using & maintenance for user:
Operation manual for installation, adjusting, operation, maintaining;
Professional marking software;

---
