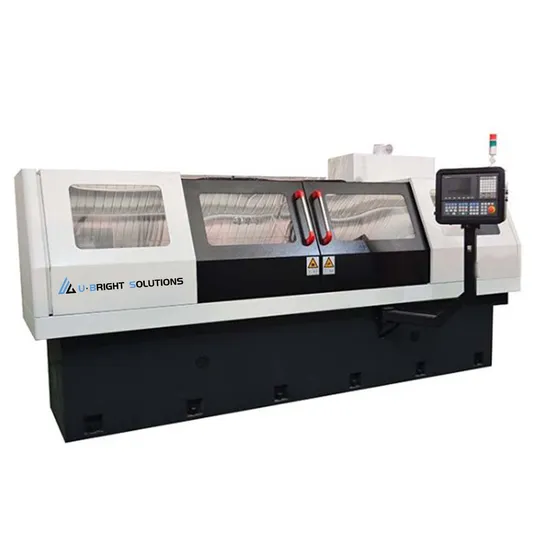

Horizontal Shafts CNC Deep Hole Drilling and Boring Machine for Value and Pump

Product Description

This machine is designed and developed for processing bar shaft products. Uniaxial, biaxial, four axis are optional according to user' S demand. Three jaw chunk or self drive cone disc are adopted , to provide the most appropriate solutions to users .
Local After-sales Service in India and Vietnam
We are an advanced manufacturing solutions provider.
CNC Deephole drilling machine suited for drilling 3-D or 2-D hole system. It is adopting chip moved outer, with high efficiency, high accuracy , drill small-holes by "gun-drilling "method. It can instead of drilling,counting,reaming by one drilling process obtain sourcing accuracy. Bord accuracy is IT7-IT10, roughness Ra3.2-0.04µm, linearity<=0.05mm in 100mm length. It is used widely in plastic and rubber industry, hydraulic mechanism, automobile and tractor, generator and aviation industry for machining deephole porforation; such as cooling hole, elecheating hole, valve distributor, pump steering sharft, spindleheat-exchanger, plate, etc.
Product Parameters

ltems		Z500	Z1000	Z1500
Processing Capacity	Machining aperture range	4~30mm	4~30mm	4~30mm
	Maximum drilling depth	500mm	1000mm	1500mm
	The maximum length of workpiece	600mm	1100mm	1600mm
Spindle	Qty, of spindle	1(Or2~3)	1(Or2~3)	1
	Spindle centerline spacing	200mm	200mm	200mm
	Maximum Speed of spindle	4500rpm	4500rpm	4500rpm
	Spindle feed speed	100mm/min	100mm/min	100mm/min
	Spindle fast moving speed	1000mm/min	1000mm/min	1000mm/min
Power	Spindle Motor	7.5kw	7.5kw	7.5kw
	Total Power	18kw	18kw	18kw
Cooling System	Pressure range of cooling liquid	2~10MPa	2~10MPa	2~10MPa
	Flux range of cooling liquid	0~200L/min	0~200L/min	0~200L/min
Machine Tool	Floor Area of Machine Tool(Length*Width)	4300×2700×1900mm	4800×2800×1900mm	5000×2600×2000mm
	Weight	5ton	7ton	10ton

---
