Dzjx Steam Jacketed Cooking Kettle Tilt Jacket Kettl with Agitor

Product Description

Product Description

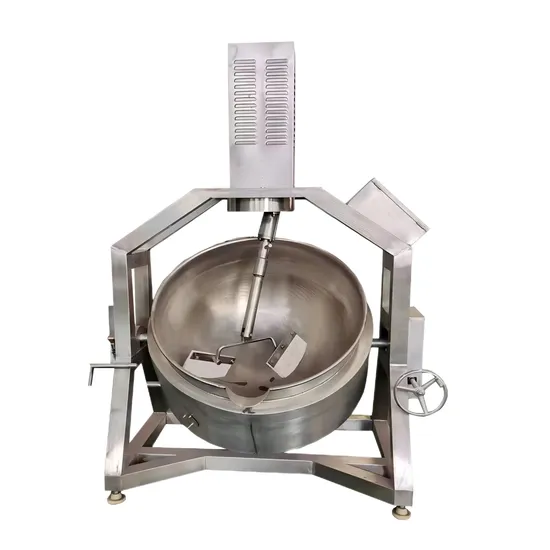

DZJX stainless steel jacketed kettle

Jacketed kettle is a food processing product made by welding technology. It has the characteristics of large heating area, high thermal efficiency, uniform heating, short boiling time of materials, controllable heating temperature, beautiful appearance, convenient installation and operation, safety and reliability, etc., and is widely used in restaurants and central kitchens for cooking, brine cooking, meat stew, porridge, etc., to improve food production efficiency and ensure food safety.The jacketed kettle can be heated in three ways. 1.steam heating: a certain steam source is used as a heat source, and the steam is heated into the jacket of the sandwich pot to heat the materials in the sandwich pot. Advantages: The steam sandwich pot has the advantages of fast heating speed, high thermal efficiency, large heating area, uniform heating, easy to control heating temperature, short boiling time and so on.
2.electric heating: is the electric heating as the heat source, is the electric heating tube to heat the thermal oil in the sandwich, through the heat of the thermal oil in the sandwich to heat the material. Advantages: electric heating has a large heating area, uniform heating, heating temperature is easy to control.
3.gas heating: refers to the use of natural gas, liquid gas and other fuel heating, in the use of gas sandwich pot need to open the gas valve, the gas, with the heat of fuel combustion to heat the material. Advantages: Gas sandwich boiler has the characteristics of low energy consumption and fast efficiency.
Applied to production line
Detailed Photos
Product Parameters

Model	Electric heating	Equipment size (motor height 440mm)	Stirring power (kw)	Heating power (kw)	diameter (mm)	Heat transfer oil dosage
DZKJ-50	50L	1120×790×850mm(1290)	0.75	12	600	30
DZKJ-100	100L	1220×890×870mm(1310)	1.1	15	700	36
DZKJ-200	200L	1360×990×970mm(1410)	1.1/1.5	18	800	45
DZKJ-300	300L	1480×1110×1000mm(1440)	1.5	24	900	60
DZKJ-400	400L	1580×1220×1020mm(1460)	1.5	27	1000	70
DZKJ-500	500L	1680×1310×1020mm(1480)	1.5	36	1100	80
DZKJ-600	600L	1780×1360×1020mm(1510)	2.2	36/48	1200	100

Model	gas	Equipment size (motor height 440mm)	Mouth diameter(mm)	Stirring power (kw)	Liquefied gas consumption(kg)	Natural gas consumption (m3)
VBKJ-50	50L	1240×800×950mm(1390)	600	0.75	1.5~2	2m3
VBKJ-100	100L	1350×900×980mm(1420)	700	1.1
VBKJ-200	200L	1480×990×1030mm(1470)	800	1.1
VBKJ-300	300L	1580×1080×1030mm(1470)	900	1.5	2~3	3m3
VBKJ-400	400L	1680×1210×1080mm(1520)	1000	1.5
VBKJ-500	500L	1800×1310×1200mm(1640)	1100	1.5
VBKJ-600	600L	1900×1360×1260mm(1700)	1200	2.2

Model	steam	Equipment size (motor height 440mm)	Mouth diameter(mm)	Pot thickness (mm)	Stirring power (kw)	gas consumption (kg)
VBKJ-50	50L	1120×790×850mm(1290)	600	liner:4mm casing:3mm	0.75	33
VBKJ-100	100L	1220×890×870mm(1310)	700		1.1	44
VBKJ-200	200L	1360×990×970mm(1410)	800		1.1	72
VBKJ-300	300L	1480×1110×1000mm(1440)	900		1.5	110
VBKJ-400	400L	1580×1220×1020mm(1460)	1000	liner:5mm casing:3mm	1.5	136
VBKJ-500	500L	1680×1310×1020mm(1460)	1100		1.5	165
VBKJ-600	600L	1760×1400×1070mm(1510)	1200		2.2	190
* More models, support customization *

Range Of Application
1.food processing : used in the processing of confectionery, pastry, beverage, fruit juice, jam, preserves, dairy products and canned foods, including the melting, disinfection, heating, hot pressing, pre-cooking, preparation, boiling, steaming and concentrating of materials.
2.catering industry : suitable for large restaurants, restaurants, hotels, guest houses, restaurants and other places, for soup, cooking, stew meat, porridge and so on.
3.chemical and pharmaceutical : used for heating and stirring in the pharmaceutical process.
Our Advantages
1.The parts in contact with the material are made of stainless steel.
2.The heating speed is fast, the liquid material boiling time is short, the heating area is large, the thermal efficiency is high, and the heating is uniform.
3.The use of safe, easy to operate, widely used.
4.Machine materials can be selected according to different needs, using carbon steel or stainless steel.We will provide drawings and design solutions for each customer.
5.A variety of heating methods (steam, electric heating, gas heating), discharge methods (vertical and tilting) and stirring devices are available.
6.Steam heating sandwich pot speed is fast, the first pot of normal temperature water heating to boiling steam for about half an hour, but to have an independent high pressure steam system (supporting the corresponding boiler), the cost is high, the advantage is that the heating speed is fast.
7.Electric heating sandwich pot, also known as thermal oil sandwich pot: the advantage is economic, but the heating speed is slow, can achieve non-pressure heating, heating temperature can reach more than 260 degrees. Company Profile

Xinxiang Dongzhen Machinery Co., Ltd.
1.With 36 years of professional production of rubber, food, medicine, chemical and mineral equipment experience, and has a good cooperative relationship with the world 500. 2.All raw materials purchased with domestic and foreign well-known manufacturers.
3.We have designed production lines for many companies, such as cosmetics production line ,clove production line, blue bubble production line, flour production line, yeast production line, detergent production line,etc.
4.1 Years Warranty, 14 Days Delivery, Factory Price.
5.14800m2 factory, Own R&D Team.
6.Free design service, free professional solutions.
7.Passed ISO9001, CE, SGS, Intetek certificates.
8.Provide complete transportation service and after-sales service.
Pre-Sales Service
* Inquiry and consulting support.
* Free solutions .
* View our Factory.
* Make plans for choice according to the needs and special requirements of users in different sectors .
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Establish long-term and friendly relationship.
Certifications
FAQ
1.How we control our quality?
Products are designed by technicians and engineers to ensure the quality of product structure design; Product parts and raw materials are purchased from famous brand manufacturers, the machine is produced by the company's own factory, and the design and quality inspection personnel are strictly checked to ensure that the product is strong and durable, and each machine is arranged to test the process before leaving the factory to ensure product quality.
2.How we fufil our service?
Our company provides perfect pre-sales and after-sales service, all sales staff have a high level of professional knowledge, can quickly solve customer problems, for the sake of customers, anticipate customer needs in advance, take the initiative to solve problems for customers, and cooperate with technical personnel to put forward professional personalized
solutions and drawings.
3.How do we do after-sales service?
We provide on-site installation service, if the machine fails, we will provide professional technical support such as remote
technical support, on-site technical support, training, etc, the specific way needs to be determined according to the nature of the problem and customer needs. Communicate with customers frequently, understand the use of products, find problems and solve them in time. Regular maintenance of sold products, provide professional maintenance personnel and equipment.
4.How we support our agent?
To provide dealers with high quality, innovative or distinctive products, timely addition of new products, replace the old
products. Provide technical training, systematic training of product technology and marketing strategies, help dealers improve sales and management capabilities, provide higher rebate levels to excellent dealers, and face problems together with a win-win attitude.

---
