Add Spindle Center Water Outlet Bt40 Tool Holder Drilling and Milling Center CNC Machine

Product Description

Add spindle center water outlet BT40 tool holder drilling and milling center cnc machine
Product Description
Suitable for:
This machine tool is most suitable for processing fields: aviation equipment, optical precision parts, auto parts, electronic connectors, advanced button accessories, small valves, watch parts, threaded joints, etc. Good processing for small parts, precision parts and non-ferrous metals. Hardware parts: steel parts, stainless steel parts, copper and aluminum parts, Disk parts: precision shaft pin, shaft sleeve, spindle, ring Precision thread: high-grade thread joint, slightly dense spindle lock cap, tooth compound
Feature
The machine tool is made of high-strengthresin sand casting, and the machining centerhas a wide guide rail base. The screw rod isa 3210/4010 double nut ball screw, driven byan AC servo motor.
The machine tool has good rigidity andhigh precision stability. The system isequipped with RS232 communicationinterface, which is suitable for processingvarious small and medium-sized parts withhigh precision requirements and complexshapes.
The system can be equipped withoptional systems such as Nako Sanling.Guangzhou CNC, FANUC, SEIMENS, etc.to meet the needs of different users.
Product Parameters

Staging	Workbench size (W*L)		mm	1200X420
	T-shaped groove on workbench			Three grooves
	grooves pitch		mm	140
	groove width		mm	18
	Max load		KG	400
Main shaft	Spindle speed		rpm	8,000(12000,3500)
	Spindle power		kw	7.5kw(11kw)
	Spindle taper hole			BT40
	Distance from workbench to spindle end face		mm	150-550
Feed	Quick movement	X axis	m/min	30
		Y axis	m/min	30
		Z axis	m/min	30
	Travel	X axis	mm	600
		Y axis	mm	400
		Z axis	mm	400
	Feed rate		mm/min	10000
ATC	Knife handle type		ST	BT40
	Tool magazine		ea	12
	Maximum drilling diameter		mm	35(50)
	Maximum tapping diameter		mm	24(27)
	Maximum milling cutter diameter		mm	120
	Tool change time(knife to knife)		S	1.2
	Repeatability		mm	±0.003
Barometric pressure			kgf/cm2	6
Power supply quantity			Kva	25
MACHINE SIZE			mm	2200x2200x2450
Machine weight			KG	3600

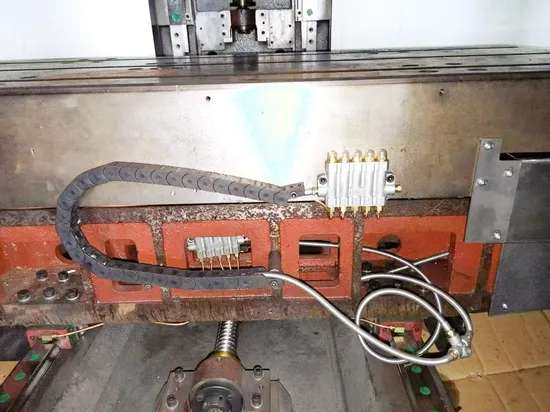

Detailed Photos

Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.

---
