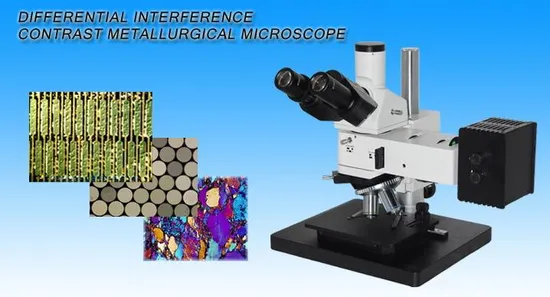

Professional High Quality Upright Metallurgical Microscope MLM-100BD
MLM-100BD industry checking and measure microscopes are suitable to observe surfaces structure and geometry of work piece. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Lift or down the optical and illumination unit along the leader to adjust the observation part of workpiece by moving the mechanical stage. The motion of the focusing is roll that the roller bearing moved guiding the trigon slideway, so that the moving process is smooth. This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material etc.
| Eyepiece | Wide field WF10X (field number: Φ22mm) |
| Infinity plan achromatic Objective | MLM-100(Equipped with bright field objectives) | PL L5X/0.12BD working distance:9.70mm (no cover glass) |
| PL L10X/0.25BD working distance:9.30mm (no cover glass) |
| PL L20X/0.40BD working distance:7.23mm (no cover glass) |
| PL L50X/0.70BD working distance:2.50mm (no cover glass) |
| Eyepieces tube | Trinocular, Inclination 30°, can be shot in 100% light flux. |
| Epi-illumination system | 12V50W, halogen lamp, adjustable brightness |
| Integrated field, aperture diaphragm and(Y,B,G,ground glass) swit ching device. Push-pull analyzer and polarizer. |
| Focus system | Coaxial coarse/fine focus system with tension adjustable and up stop, the minimum division of fine focusing: 1 μm |
| Nosepiece | Quintuple Backward ball bearing inner locating |
| Working Stage | Base overall size:300mmX240mm |
| Mechanical stage, overall size: 185mmX140mm, moving range: (T)75mmX(L)50mm |
| Optional Accessory | Eyepiece | Dividing eyepiece(field numberΦ22mm) |
| Objective | MLM-100BD Bright & dark field objective:40X, 60X, 80X, 100X |
| CCD adapter | 0.4X, 0.5X,1X, 0.5X(with dividing) |
| Camera | USB output:1.3M/2.0M/3.0M pixel
VIDEO output:380/520TV Line |
| Digital camera adapter | CANON(EF) NIKON(F) |
