High Quality Planer Thickness Woodworking Machine for Board Surface Thickening

Product Description

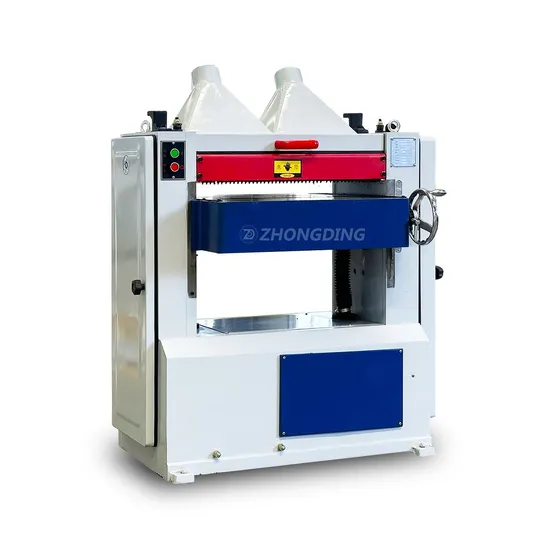

30mm Wood Planer Thicknesser Woodworking Cutting Planing Machine
MB106H
Product Description
There are four types of heavy type planer thicknesser,and their models and details are described below:

Model	MB104H	MB105H	MB106H	MB108H
Max. Planing width	430mm	530mm	630mm	830mm
Planing thickness	8-190mm	8-190mm	8-190mm	10-200mm
Planing length	>250mm	>250mm	>250mm	>200mm
Max. Planing depth	6mm	8mm	8mm	8mm
Spindle speed	6000r.p.m	6000r.p.m	6000r.p.m	6800r.p.m
Feeding speed	6;8m/min	6;8m/min	6;8m/min	8;10m/min
Overall dimension	760*830*1240mm	760*930*1270mm	800*1060*1270mm	850*1280*1270mm
Weight	480kg	550kg	650kg	780kgs

Detailed Photos
High quality materials are used in all our components:
Certifications
Company Profile
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years.We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance,spare parts and technical advice.
We are committed to providing one-stop service for factory production.
Relying on the favorable geographical advantages of Qingdao Industrial Park,we have formed a series of panel-type furniture equipment such as table saws,edge banding machines,and CNC routers,as well as solid wood woodworking machines such as polishing machines,palner machine, press machine etc,which have been exported to lots of countries and regions,such as Europe,Russia,Southeast Asia,Middle East,North America,and Australia.Bring our products and services for more than 66 countrys people and customers.
We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback.Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Packaging & Shipping
Safe, thoughtful, meticulous, comprehensive packaging and transportation.
After Sales Service
Relative Products
You can click on the image or product name to jump to the related product.
1.CNC Beam Saw
2.Sliding Table Saw
3.Automatic High Speed Edge Banding Machine
We can provide all woodworking machinery, please click on my home page for details, or contact me directly.

---
