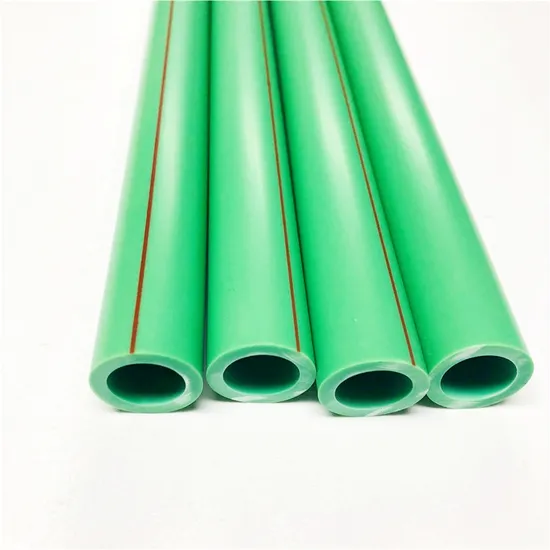

Pn25 PPR Pipe for Hot Water Supply

Product Description

PN25 PPR Pipe for hot Water Supply: Product Description
Details size and print sample of Markt ppr pipes :

Desc.	Pressure (Mpa)	Modle No.	Spec.	M/Pkg	G/M	Colour
COLD-WATER PIPE	PN 1.25MPa S5	MPA20	20×2.0	300	112	Green,gray ,white
		MPA25	25×2.3	160	164
		MPA32	32×3.0	120	275
		MPA40	40×3.7	64	413
		MPA50	50×4.6	40	652
		MPA63	63×5.8	24	1030
		MPA75	75×6.8	18	1425
		MPA90	90×8.2	12	2030
		MPA110	110×10.3	6	3010
		MPA160	160×14.6	4	6380
Print:LOGO PP-R PIPE SIZE PN12 DIN8077 2024-8-15 09:00AM 01M
COLD-WATER PIPE	PN 1.60 MPa S4	MPB20	20×2.3	300	130
		MPB25	25×2.8	160	198
		MPB32	32×3.6	120	326
		MPB40	40×4.5	64	509
		MPB50	50×5.6	40	792
		MPB63	63×7.1	24	1218
		MPB75	75×8.4	18	1682
		MPB90	90×10.1	12	2426
		MPB110	110×12.2	6	3581
		MPB160	160×17.9	4	7645
Print:LOGO PP-R PIPE SIZE PN16 DIN8077 2024-8-15 09:00AM 01M
HOT-WATER PIPE	PN 2.0MPa S3.2	MPC20	20×2.8	300	148
		MPC25	25×3.5	160	230
		MPC32	32×4.4	120	370
		MPC40	40×5.5	64	575
		MPC50	50×6.9	40	896
		MPC63	63×8.7	24	1410
		MPC75	75×10.3	18	2010
		MPC90	90×12.3	12	2870
		MPC110	110×15.1	6	4300
		MPC1160	160×21.9	4	9200
Print:LOGO PP-R PIPE SIZE PN20 DIN8077 2024-8-15 09:00AM 01M
HOT-WATER PIPE	PN 2.5MPa S2.5	MPD20	20×3.4	300	172
		MPD25	25×4.2	160	265
		MPD32	32×5.4	120	434
		MPD40	40×6.7	64	671
		MPD50	50×8.3	40	1040
		MPD63	63×10.5	24	1650
		MPD75	75×12.5	18	2340
		MPD90	90×15.0	12	3360
		MPD110	110×18.3	6	5010
Print:LOGO PP-R PIPE SIZE PN25 DIN8077 2024-8-15 09:00AM 01M

1, Certification: ISO9001: 2008, ISO14001, CE.
Standard: GB/T18742.2-2002, GB/T18742.3-2002, DIN8077, DIN8078
2, Material: 100% new Polypropylene.
3, Colors: White, green, grey, light brown or other colors as your request.
4, Connection: Socket fusion joint, electro fusion joint or transition joint
5, Applications: Cold or hot water supply, heating system including flooring heating and radiating system, central air conditioning system, industrial liquids transportation
6, Advantages: High Temperature Resistance: The maximum sustained temperature is up to 70° C, the maximum transient temperature is up to 95° C.
Heat Preservation: Low thermal conductivity, Only 1/1500 of brass pipe, 1/250 of steel pipe
7. Non-toxic: No heavy metal additives, would not be covered with dirt or contaminated by bacterium
8, Corrosion Resistant: Resist chemical matters or electron chemical corrosion
9, Lower Installation Costs: Light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
10, Higher Flow Capacity: Smooth interior walls result in lower pressure loss and higher volume than metal pipes
11, Long life: More than 50 years under normal conditions
12, Recycled and Environment-friendly
Data of Markt PPR Pipe:
Detailed Photos
Related products
Markt supply most of ppr products and its tools:PPR Fitting ,ppr valve ,ppr manifold and pipe cutter ,welding machine.
Ppr fittings :Color in white ,green ,gray ,blue as need .
Green color:
Gray color:
White color:
Ppr valves:Gate vavle ,union valve....
PPR union:
Packaging & Shipping
A:Packing:
1,Pipes in bar with the length 4m/5m/6m
2,Common pipes packedn in nylon bag.
3,Small size pipe can packed in big size pipe to save the area.
4,Lable on pipes
5,All in strong exporting packing
B:Shipping :
1,Delivery date :10-15 days after order confirmed--Quick delivery
2,100% delivery in time
3,LCL order confrimed
4,Shipped by express ,air or Sea.
5,All in strong and export packing Certifications
Certificates of PPR Pipe and fittings :
All Markt products have high quality produce under ISO9001 Systems and with certificate CE,Gurantee 20 years of use .
Markt supply all systems of heating and water ,you can buy all things ,ppr pipe ,ppr fittings and installen tools with us ,Will save more time ,more ocean cost and size fit ,use safe.

---
