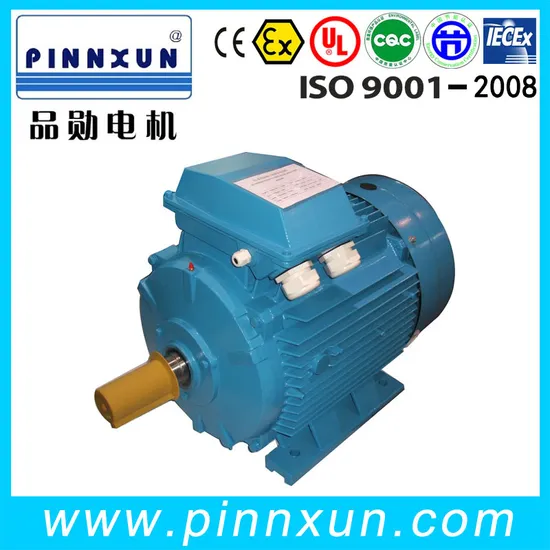

Ie2 Ie3 High Efficiency Asynchronous AC Electric Three Phase Induction Water Pump Air Compressor Gear Box Squirrel Cage Motor

Product Description

YE2 YE3(IE2 IE3) High efficiency motor
IE2 IE3 high efficiency asynchronous ac electric Three phase Induction water pump air compressor gear box squirrel cage motor

Product Description Feature and usage

YX3 series high efficiency three phase motors is high efficiency energy-saving motor.Efficiency index of motor reachedGB18613'middle-small motor efficiency limited value and efficiency grade'grade 2 efficiency standard,according to IE2/EFF1 efficiency index of IEC standard.Our production advance in domestic and reached advanced level in international.We are on top of the name list that can get the CHINA certification for energy conservation product.
YX3 series three phase electric motors have a lot of advantages including high efficiency, energy saving, large starting torque, excellent performance, low noise, low vibration, high reliability, easy operation & servicing etc. While the mounting dimension and rated output power of YX3 series electric motors are in conformity with IEC standard.
YX3 Series motors are widely used as drive mechanism of various machineries, such as pumps, compressors, machining equipments, transportation system, agricultural mechanism, and food processing mechanism etc. Its operating conditions are the same as Y2 series three phase electric motors.

Model Explanation

Structure Description

YX3 series ac induction motor mounting details: Schematic diagram mounting type B3 B35 B5 V1 mounting Discribtion frame with feet,end-shield without flange frame with feet,end-shield with flange frame without feet,end-shield with flange frame without feet,end-shield with flange Suitable frame H63-355 H63-355 H63-280 H180-355 YX3 series motors are totally enclosed fan cold(TEFC). bearing type Horizontal vertical motor frame DE side N-DE side DE side N-DE side 63 6201-2RZ/Z2 6201-2RZ/Z2 6201-2RZ/Z2 6201-2RZ/Z2 71 6202-2RZ/Z2 6202-2RZ/Z2 6202-2RZ/Z2 6202-2RZ/Z2 80 6204-2RZ/Z2 6204-2RZ/Z2 6204-2RZ/Z2 6204-2RZ/Z2 90 6205-2RZ/Z2 6205-2RZ/Z2 6205-2RZ/Z2 6205-2RZ/Z2 100 6206-2RZ/Z2 6206-2RZ/Z2 6206-2RZ/Z2 6206-2RZ/Z2 112 6206-2RZ/Z2 6206-2RZ/Z2 6206-2RZ/Z2 6206-2RZ/Z2 132 6208-2RZ/Z2 6208-2RZ/Z2 6208-2RZ/Z2 6208-2RZ/Z2 160 6209-2RZ/Z2 6209-2RZ/Z2 6209-2RZ/Z2 6209-2RZ/Z2 180 6211/Z2 6211/Z2 6211/Z2 6211/Z2 200 6312/Z2 6312/Z2 6312/Z2 6312/Z2 225(2P) 6312/Z2 6312/Z2 6312/Z2 6312/Z2 225(4-8P) 6313/Z2 6212/Z2 6313/Z2 6312/Z2 250(2P) 6313/Z2/Z2 6313/Z1 6313/Z2 6313/Z1 250(4-8P) 6314/Z1 6213/Z1 6314/Z1 6313/Z1 280(2P) 6314/Z1 6313/Z1 6314/Z1 6313/Z1 280(4P) 6317/Z1 6313/Z1 6317/Z1 6313/Z1 315(2P) 6317/Z1 6317/Z1 6317/Z1 6317/Z1 315(4-8P) NU319 6319/Z1 NU319 6319/Z1 355(2P) 6319/Z1 6319/Z1 6319/Z1 6319/Z1 355(4-8P) NU322 6322/Z1 NU322/Z1 6322/Z1

Motor Performance

Power range:0.12-315KW
Rated Voltage: 380V 400V 440V 690V
Speed;3000rpm 1500rpm 1000rpm 750rpm 600rpm
Protection Class: IP55
Ambient Temperature: -15°C~40°C
Altitude: not exceed 1000 Meter
Rated Frequency: 50Hz/60Hz
Insulation Class: F
Temprature rise: B
Working Duty: S1(Continuous)
Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above
Company Profile
Certifications
Production Process
Production application
Packaging & Shipping

After Sales Service
WE ARE READY

Q: Do you offer OEM service?
A: Yes.

Q: What is your payment term?
A: 30% T/T in advance, 70% before delivery. Or irrevocable L/C.

Q: What is your lead time?
A: About 10-45 days after receiving deposit or original L/C.

Q: What certifiicate do you have?
A: We have CE, ISO,CCC and so on.
WHY CHOOSE US

WHAT WE DO AT PINNXUN
Stamping of lamination Rotor die-casting Winding and inserting- both manual and semi-automatically Vacuum varnishing Machining shaft, housing, end shields, etc Rotor balancing Painting - both wet paint and powder coating Motor assembly Packing Inspecting spare parts every processing 100% test after each process and final test before packing. WHAT PINNXUN CAN DO FOR CUSTOMERS
PINNXUN supplies standard products to customers. PINNXUN supplies standard products under customers' brands and packaging, etc PINNXUN R&D department develops any new products together with the customers.

---
